How to Assemble the Product

TM-SH-06

1. Inset the Brush (A11-TB025) into the Holder.
2. Insert the set screw (M2.6-6) into the hole at the tip of the Holder and tighten the screw using the hex key (torque: 0.25 Nm).

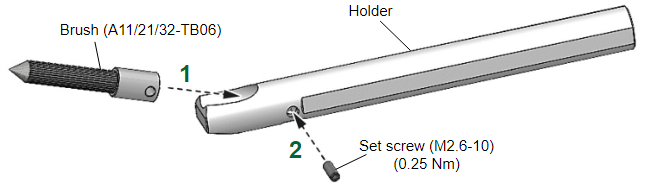

TM-SH-12

1. Insert the Brush (A11/21/32-TB06) into the Holder.
2. Insert the set screw (M2.6-10) into the hole at the side of the Holder and tighten the screw using the hex key (torque: 0.25 Nm).
