Product Specifications

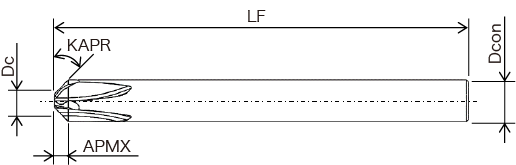

XC-C-03-M / N
| Product code | XC-C-03-M | XC-C-03-N |
| Chamfer size (mm) | C0.3-0.6 | |
| Coating | AlTiCrN coated (for carbon steel, stainless steel, heat resistant alloys) | Uncoated (for aluminum, plastics) |
| LF (mm) | 50 | |
| KAPR | 45° | |
| APMX(mm) | 1 | |
| Dcon(mm) | Φ6 | |
| Number of blades | 3 | |
| Dc (Chamfering Alignment Diameter)(mm) | Φ2 | |
| Usage | Cross-feed machining | |

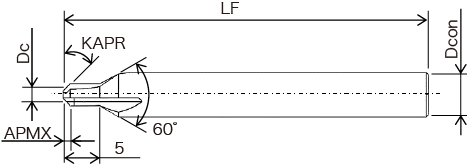

XC-C-06-M / N
| Product code | XC-C-06-M | XC-C-06-N |
Chamfer size (mm) |
C0.7-1.5 | |
| Coating | AlTiCrN coated (for carbon steel, stainless steel, heat resistant alloys) | Uncoated (for aluminum, plastics) |
| LF (mm) | 60 | |
| KAPR | 45° | |
| APMX(mm) | 2 | |
| Dcon(mm) | Φ6 | |
| Number of blades | 4 | |
| Dc (Chamfering Alignment Diameter)(mm) | Φ4 | |
| Usage | Cross-feed machining | |
