Type KY: Orthogonal Cross Hole - Inner Diameter (Cross Hole＞ Main Bore) XZY Machine Axis

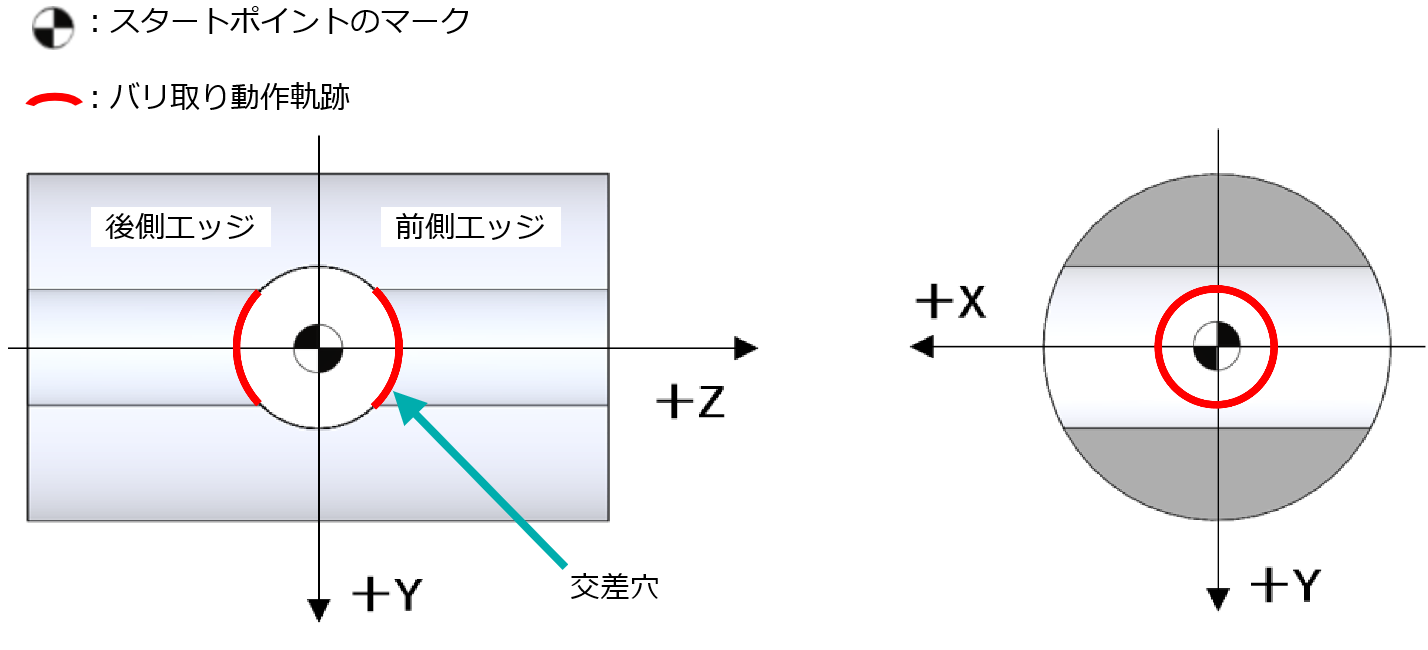

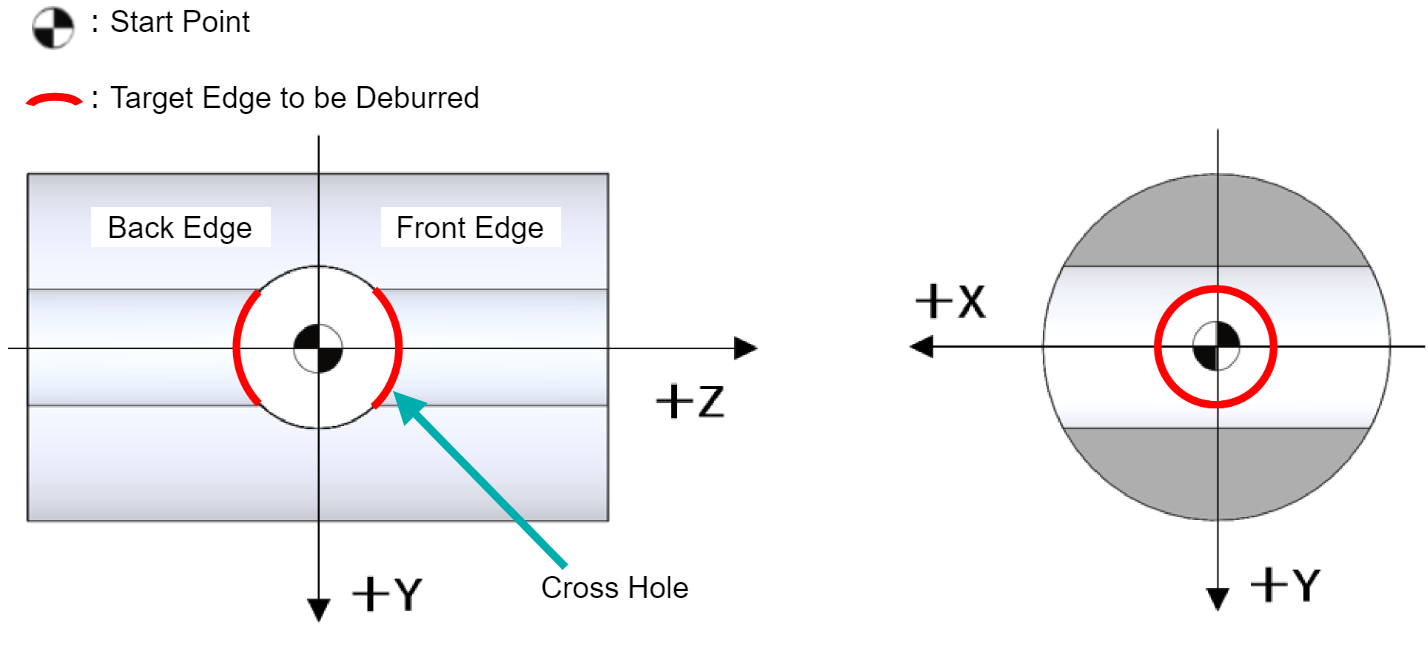

The Start Point is at the center of the Cross Hole in the YZ plane.

Along the X-axis, it is as indicated in the figures below.

Example: Orthogonal Cross Hole - Inner Diameter (Cross Hole ＞ Main Bore)
