Type BY: Orthogonal Cross Hole - Inner Diameter (Cross Hole ≦ Main Bore) XZY Machine Axis

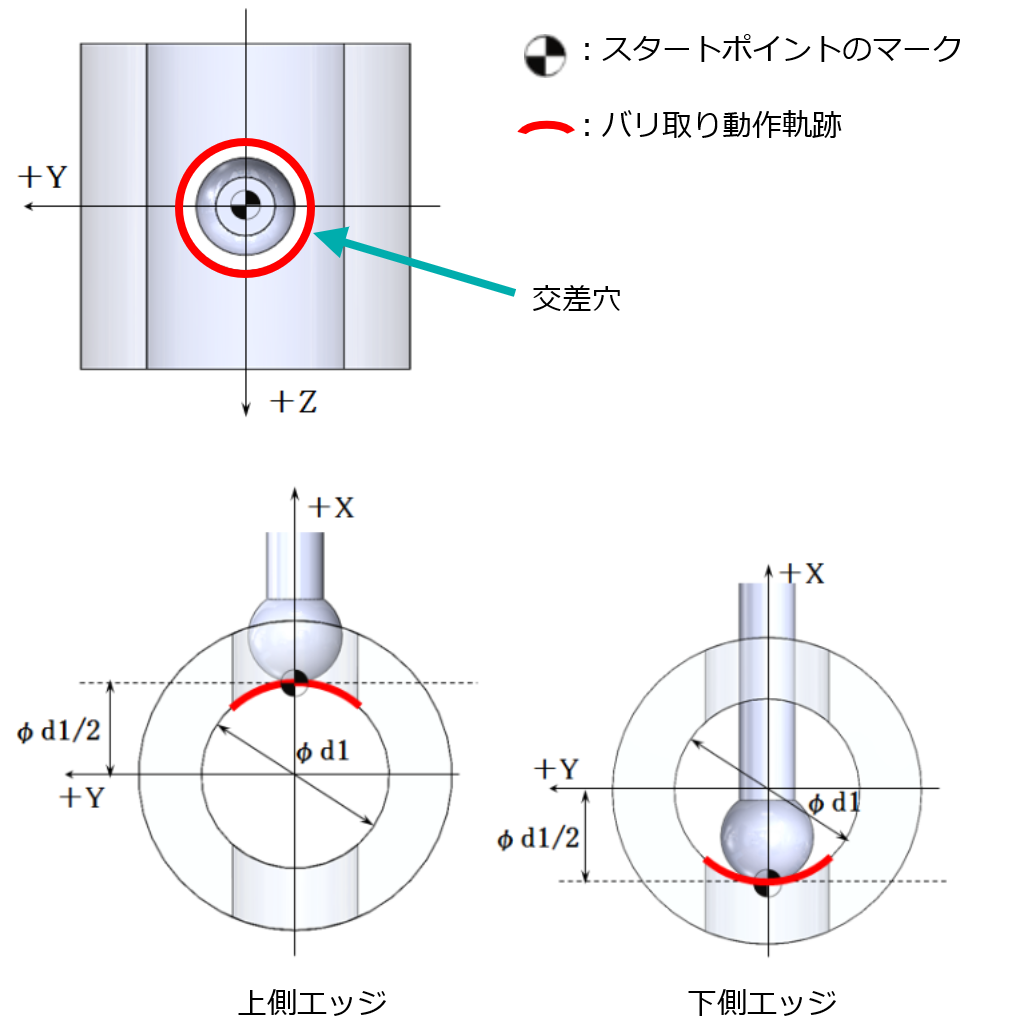

The Start Point is at the center of the Cross Hole in the YZ plane.

Along the X-axis, it is as indicated in the figures below.

Example: On-Center

Example: Off-Center
