Start Point
Start Point refers to the initial tool position from which XEBEC Back Burr Cutter and Deburring Tool Path is to begin the deburring operation. Program the tool position so that the centerline and the tip of the Cutter is precisely aligned with the Start Point that we specify. XEBEC Deburring Tool Path should run once the Cutter is brought precisely at this position.
Make sure to use appropriate codes for the X-axis and Y-axis controller modes (diameter or radius).

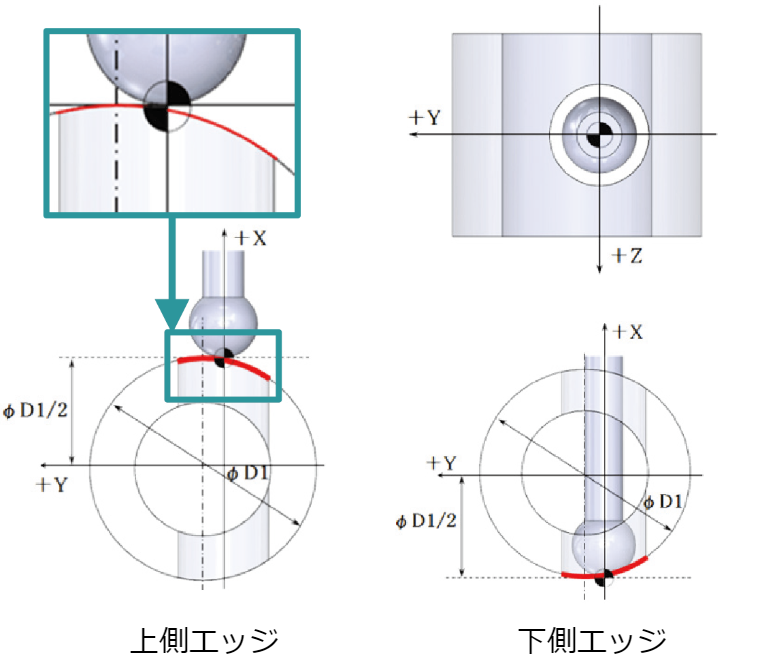

The followings are examples of the Start Point in deburring Outer Diameter Edge with XEBEC Deburring Tool Path for XZY turn-mill machines.
For the Start Point of other cross hole types, please refer to "Specifications of Cross Hole Types."

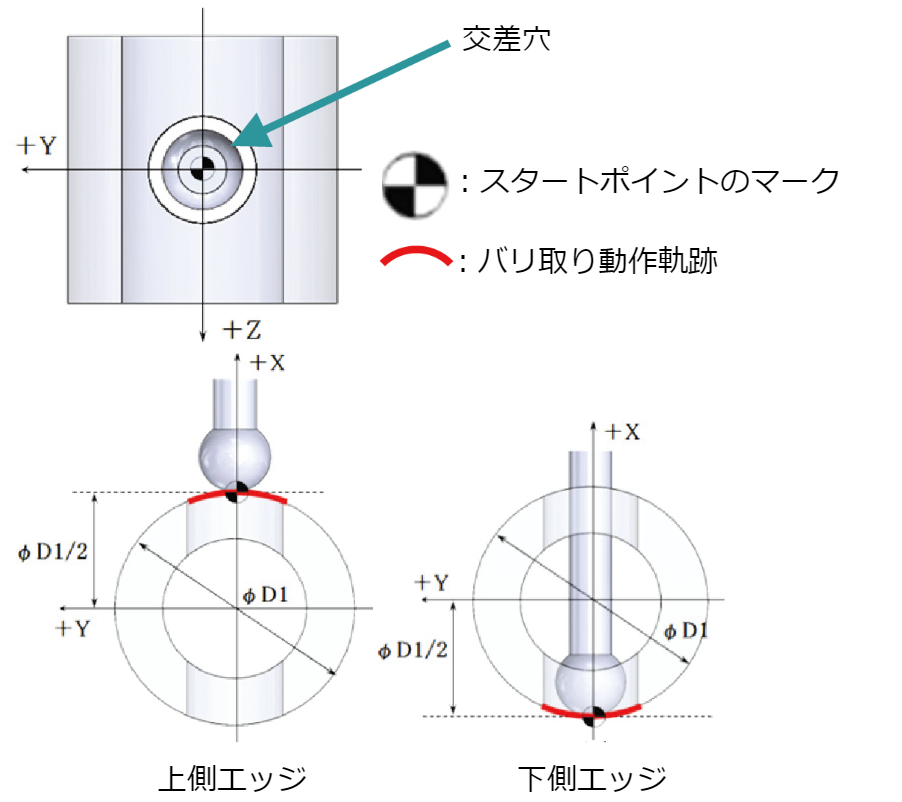

- The Start Point is at the center of the Cross Hole in the YZ plane.
- Along the X-axis, it is as indicated in the figures below.
