XEBEC Deburring Tool Path Data Format

XEBEC Deburring Tool Path data is stored in separate folders as shown below.

■First Folder Level
  • Contains folders for each target edge (Upper Edge / Lower Edge) to be deburred


       ▼
■Second Folder Level
  • Incremental (INC) Down Cut
  • Incremental (INC) Up Cut
  • Absolute (ABS) Up Cut


       ▼
■Third Folder Level
  • Contains a set of five XEBEC Deburring Tool Paths in .txt format, each corresponding to a specific deburring amount (edge break length)
  • Example: 01_0.10_ EdgeBreakAmount.txt
    The second number in the file name "0.10" indicates that the tool path is for deburring amount of 0.10mm


       ▼

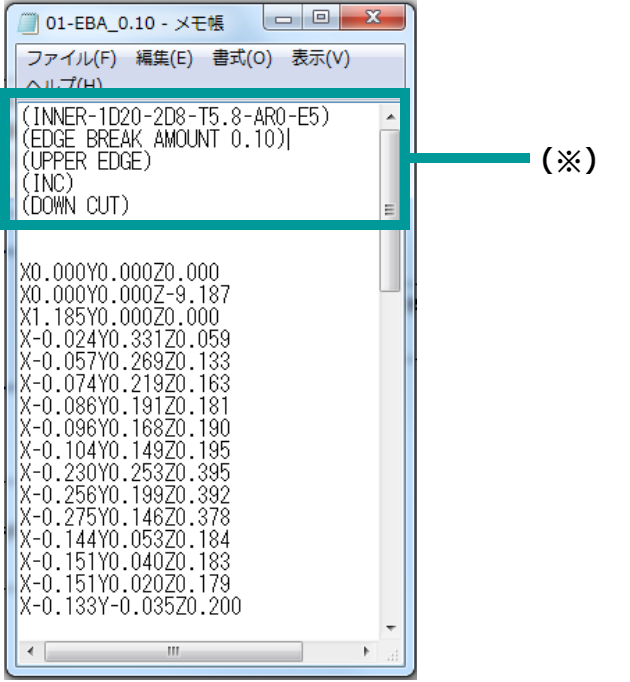

XEBEC Deburring Tool Path

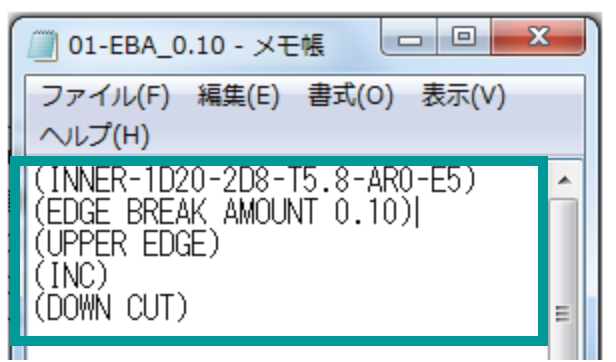

Specifications are listed at the top in parentheses ( )
Check to make sure that the Deburring Tool Path data is correct for the target edge to deburr.Examples of XEBEC Deburring Tool Path Specifications
Check to make sure that the Path data is correct for the target edge to deburr.

For XEBEC Deburring Tool Path for XZC-axis turn-mill machines, the data set exist only for the Upper Edge of both Outer and Inner Diameter cross holes. In that case, a total of 10 text files is provided.


Data Example

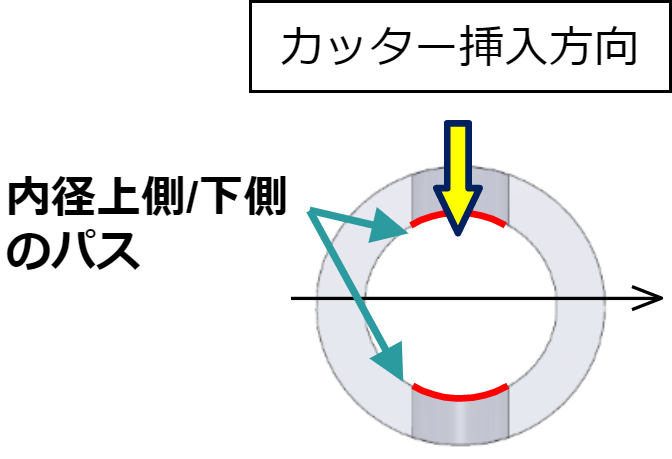

For example, a total of 20 text files are included for an Inner Diameter cross hole.

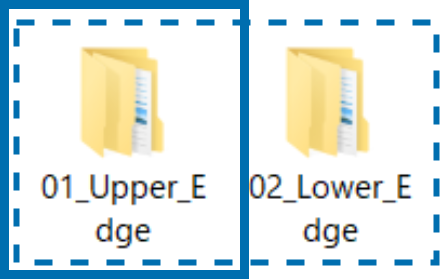

  • First Folder Level(2 Folders)
    Upper Edge and Lower Edge

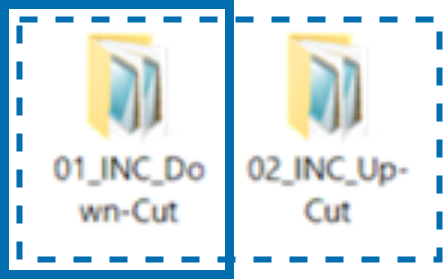

  • Second Folder Level(2 Folders)
    Incremental (INC) Up Cut / Down Cut

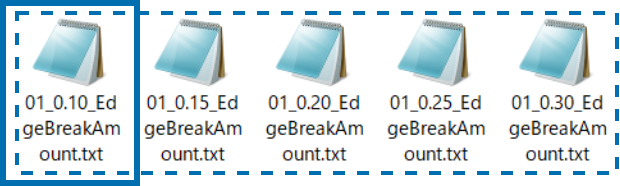

  • Third Folder Level(5 Text Files)
    Each text file corresponds to a specific deburring amount (edge break length)


Examples of XEBEC Deburring Tool Path Specifications

Example: On-center/Off-center Cross Hole XZY Machine Axis
(INNER-1D20-2D10-T5.8-E5);
(EDGE BREAK AMOUNT 0.10);
(DIAMETR);
(UPPER EDGE);
(INC);
(DOWN CUT);

Example: Orthogonal Cross Hole XZC Machine Axis
(INNER-1D20-2D10-T5.8-E5);
(EDGE BREAK AMOUNT 0.10);
(DIAMETR);
(UPPER EDGE);
(INC);
(DOWN CUT);

Specifications
Descriptions

(INNER-1D20-2D10-T5.8-E5)

INNER: Inner Edge [OUTER: Outer Edge]
1D20: Main Bore or Outer Diameter Φ20mm
2D10: Cross Hole Diameter Φ10mm
T5.8: Cutter Diameter Φ5.8mm
E5: Offset +5mm from the Main Bore or Outer Diameter Axis

(EDGE BREAK AMOUNT 0.10)

Deburring Amount 0.10mm

(DIAMETR) X-axis Controller Mode: Diameter [RADIUS: Radius]

(UPPER EDGE)

Upper Edge [LOWER: Lower Edge]

(INC)

Positioning Format: Incremental

(DOWN CUT)

Down Cut Machining [UP CUT: Up Cut Machining]

Specifications in the table above are applicable to XEBEC Deburring Tool Path for XZY turn-mill machines and XZC turn-mill machines
