Type IY and JY: Slotted Hole Perpendicular with Main Bore Axis - Outer/Inner Diameter XZY Machine Axis

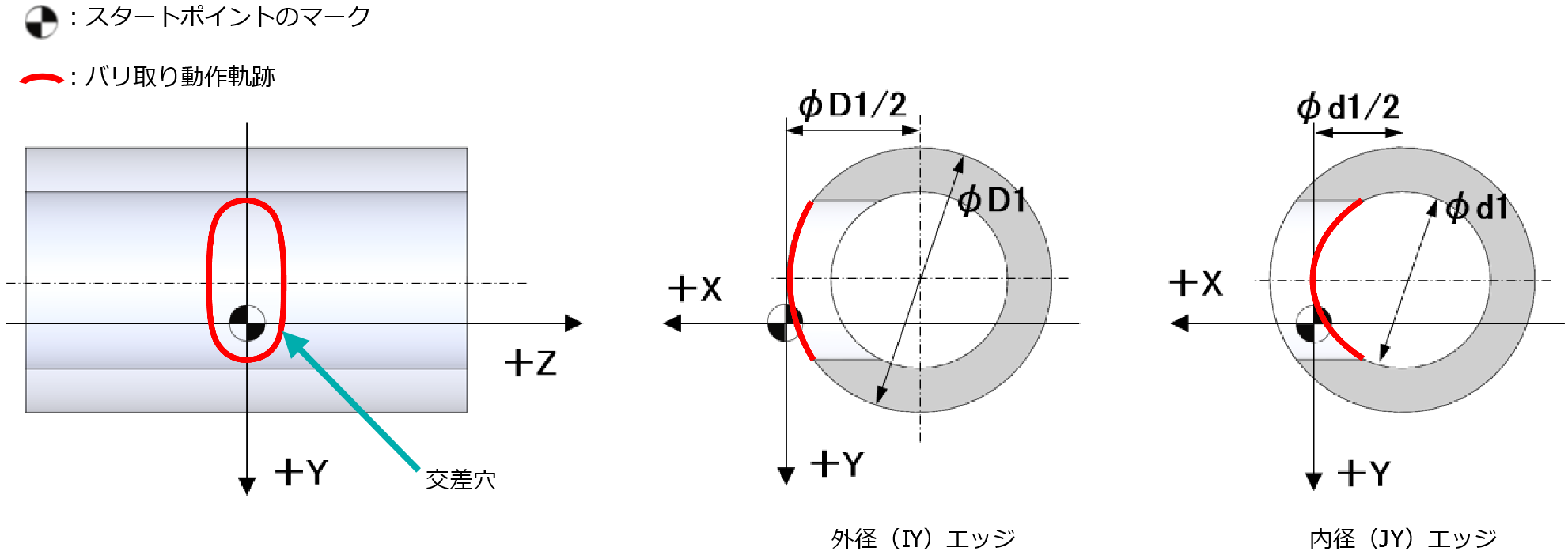

The Start Point is at the center of the Cross Hole in the YZ plane.

Along the X-axis, it is as indicated in the figures below.
