How to Implement XEBEC Path (XZY Lathes)
This section offers an example of implementing XEBEC Path into the machining program. G-codes and all other details are based on MELDAS controls. Make sure to use appropriate codes for your machine tool.
Machining Operations
- Workpiece Shape
Outer Diameter Φ30mm × Inner Diameter Φ20mm - Previous Operation
Drilled a Φ10mm hole that crosses orthogonally and on-center with the centerline of the workpiece - Target Edge to be Deburred
Upper and Lower edges of the inner diameter at the intersection of the Φ10 hole and the Φ20 hole

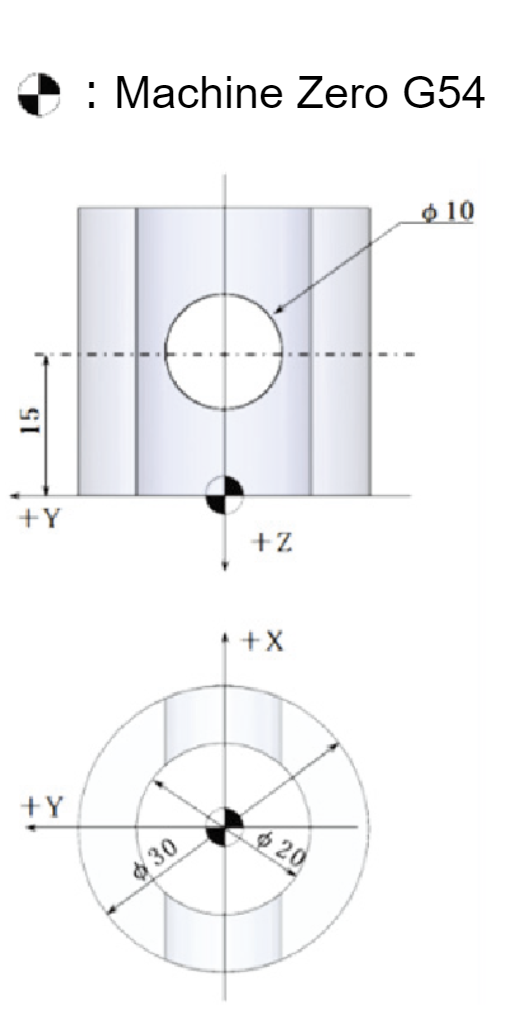

Workpiece

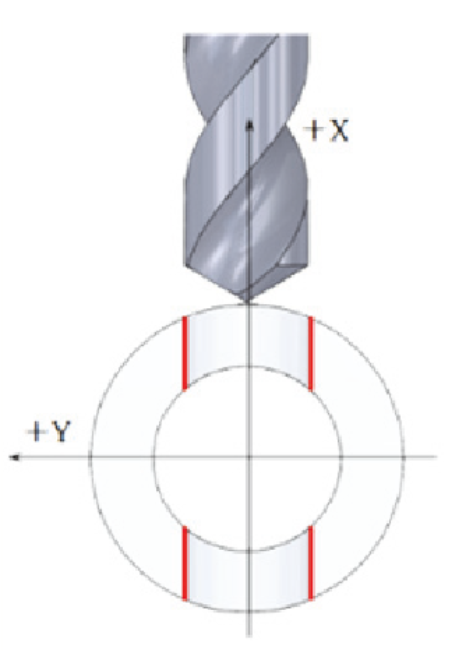

OP 1: Drilling

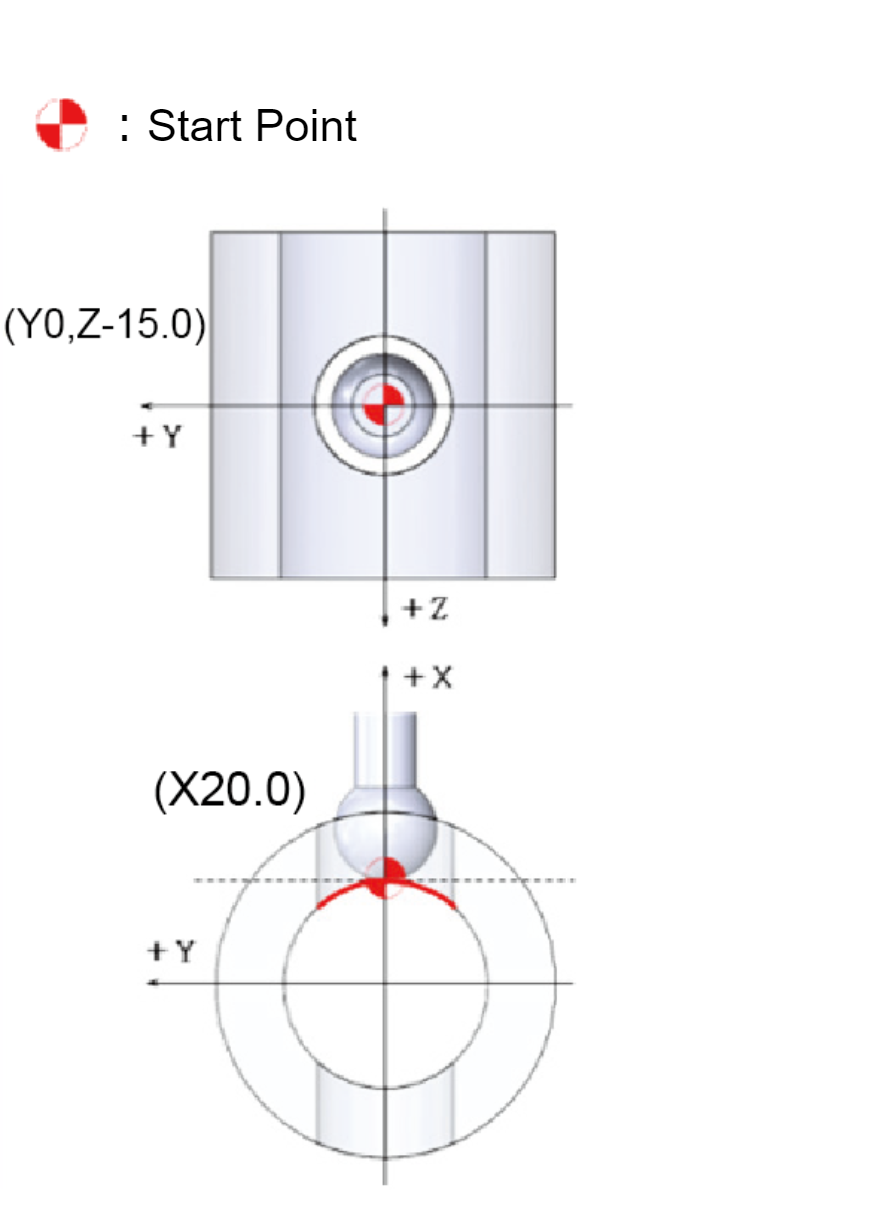

OP 2: Deburring Upper Edge

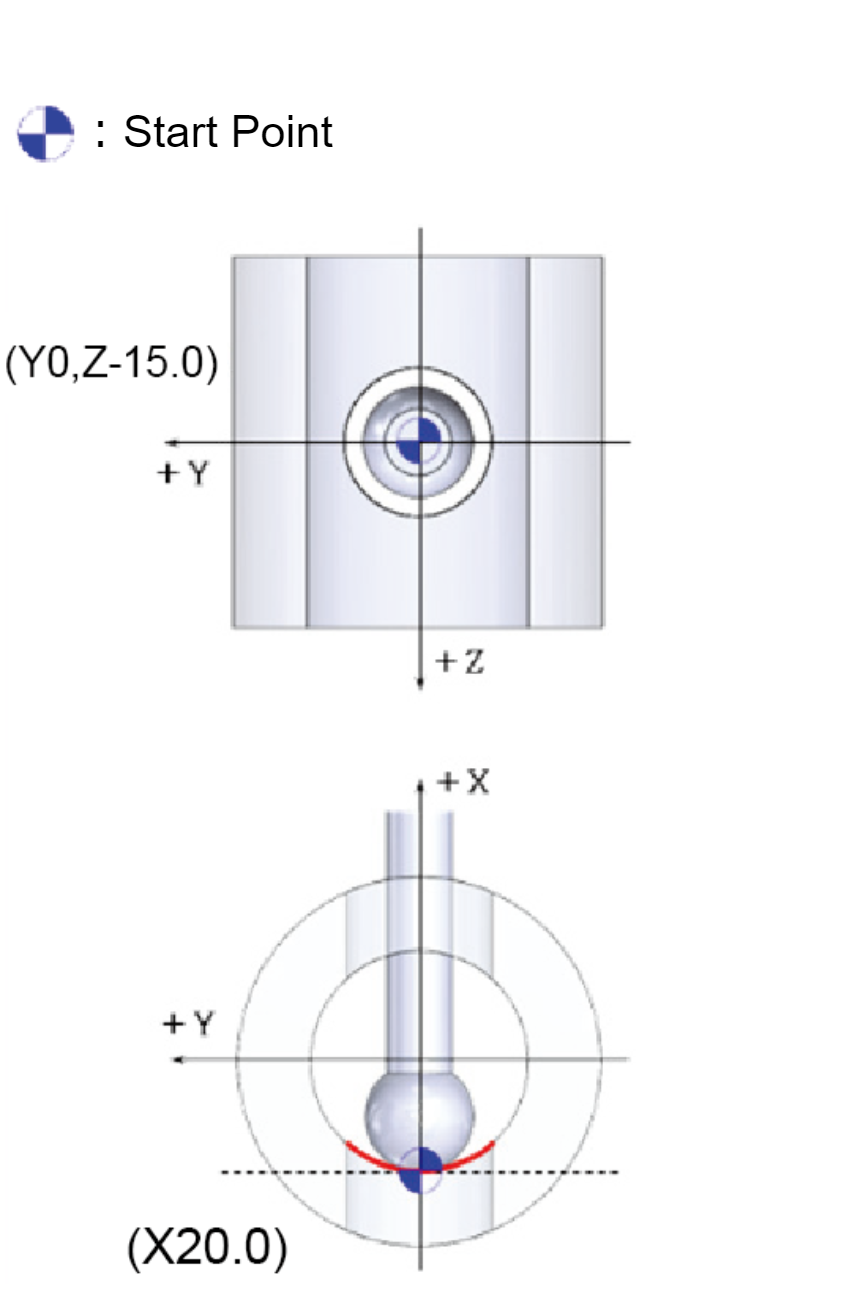

OP 3: Deburring Lower Edge
Program Overview
Main Program |
|
|---|---|
| O0001（MAIN PROG）； | |
| G0G18； | Select XY plane |
| N1(10DRILL/T1H1)； | Drilling the Φ10 hole |
| M05； | |
| M69； | Main spindle unclamp |
| G98M45； | Feed per minute and C-axis engage |
| G00G28H0.0； | Return C-axis to machine zero |
| G28V0.0； | Return Y-axis to machine zero |
| G00T0101； | Call T01 drill and tool length offset |
| G54X40.0Z50.0C0.0； | Set the work offset zero position |
| G97S5000M13； | Milling rotation in CW direction |
| Z-15.0Y0.0M08； | Position XY axes at the hole center |
| M68； | Main spindle clamp |
| G83X-40.0R-2.0F500； | Spot drilling cycle G83 |
| G80； | Cancel drilling cycle |
| G00X40.0Z50.0M69； | Main spindle unclamp |
| G28U0.0W0.0M05； | Return XZ axes to machine zero |
| M09； | |
| M01； | |
| N2（5.8BURRS CUTTER/T0202）； | Deburring operation |
| M05； | |
| M69； | Main spindle unclamp |
| G98M45； | Feed per minute and C-axis engage |
| G00G28H0.0； | Return C-axis to machine zero |
| G28V0.0； | Return Y-axis to machine zero |
| G00T0202； | Call T02 Back Burr Cutter and tool length offset |
| G54X40.0Z50.0C0.0； | Set the work offset zero position |
| G97S6000M13； | Milling rotation in CW direction |
| Z-15.0Y0.0M08； | Position ZY axes at the Start Point for Upper Edge |
| M68； | Main spindle clamp |
| G01X20.0F3000； | Position X-axis at the Start Point for Upper Edge |
| F1000； | Set feed rate for the deburring operation |
| M98P0002； | Call subprogram O0002 (XEBEC Path for Upper Edge) |
| G01Z-15.0Y0.0F3000； | Position ZY axes at the Start Point |
| X-20.0； | Position X-axis at the Start Point for Lower Edge |
| F1000； | Set feed rate for the deburring operation |
| M98P0003； | Call subprogram O0003 (XEBEC Path for Lower Edge) |
| G00X40.0； | |
| Z50.0M69； | Main spindle unclamp |
| G28U0.0W0.0M05； | Return XZ axes to machine zero |
| M09； | |
| M01； | |
| M30； | Program end |
Upper Edge Deburring Subprogram |
|
|---|---|
| O0002（UPPER EDGE SUB PROG）； | |
| U0.000V0.000W0.000； | XEBEC Path |
| U-11.293V0.000W0.000； | |
| U0.000V2.564W0.000； | |
| U0.017V-0.027W0.434； | |
| U0.046V-0.077W0.409； | |
| U-0.072V0.126W0.390； | |
| U-0.048V0.080W0.419； | |
| U-0.017V0.028W0.442； | |
| U0.000V-2.564W0.000； | |
| U11.293V0.000W0.000； | |
| M99； | Return to main program |
Lower Edge Deburring Subprogram |
|
|---|---|
| O0003（LOWER EDGE SUB PROG）； | |
| U0.000V0.000W0.000； | XEBEC Path |
| U-0.307V0.000W0.000； | |
| U0.000V2.564W0.000； | |
| U-0.017V-0.027W0.434； | |
| U-0.046V-0.077W0.409； | |
| U0.072V0.126W0.390； | |
| U0.048V0.080W0.419； | |
| U0.017V0.028W0.442； | |
| U0.000V-2.564W0.000； | |
| U0.307V0.000W0.000； | |
| M99； | Return to main program |
 |
|
