Type GY and HY: Slotted Hole Parallel with Main Bore Axis - Outer/Inner Diameter XZY Machine Axis

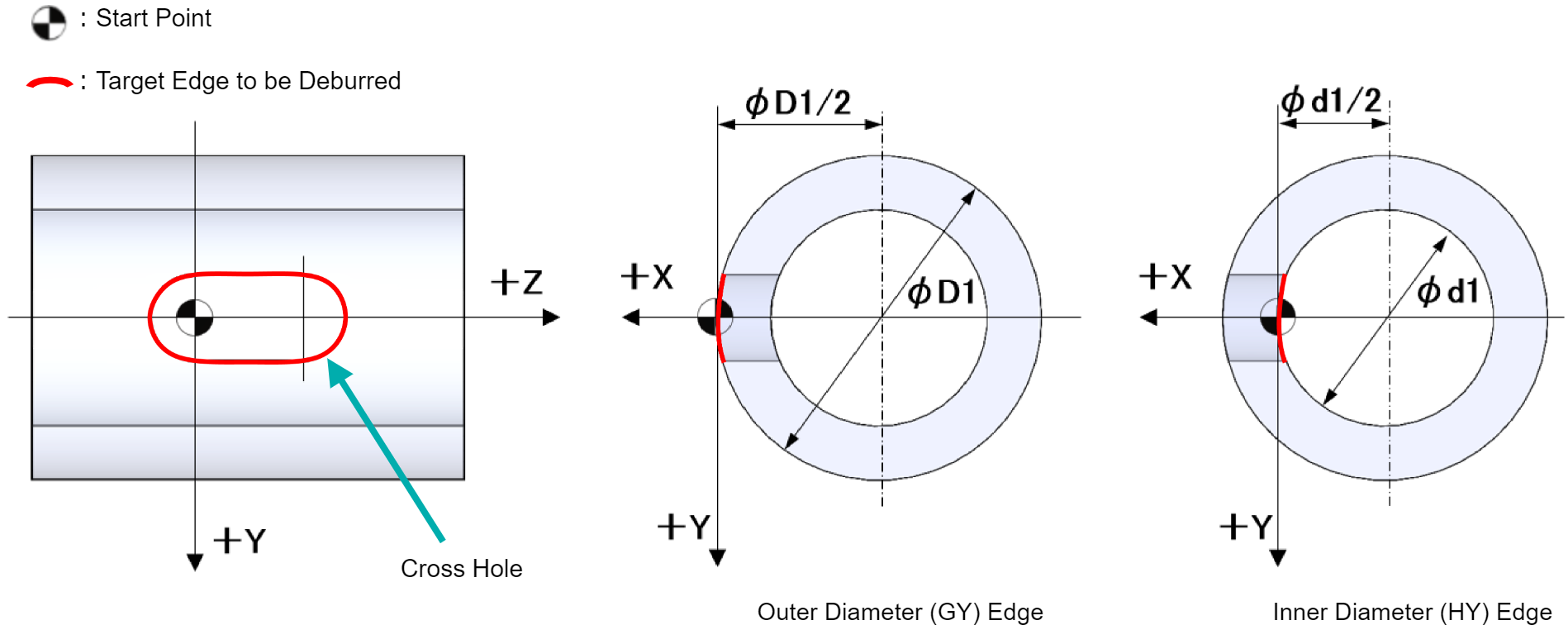

The Start Point is at the center of the Radius R in the YZ plane at the -Z side. Along the X-axis, it is as indicated in the figures below.
