Type AC: Orthogonal Cross Hole - Outer Diameter (Cross Hole ＜ Outer Diameter) XZC Machine Axis

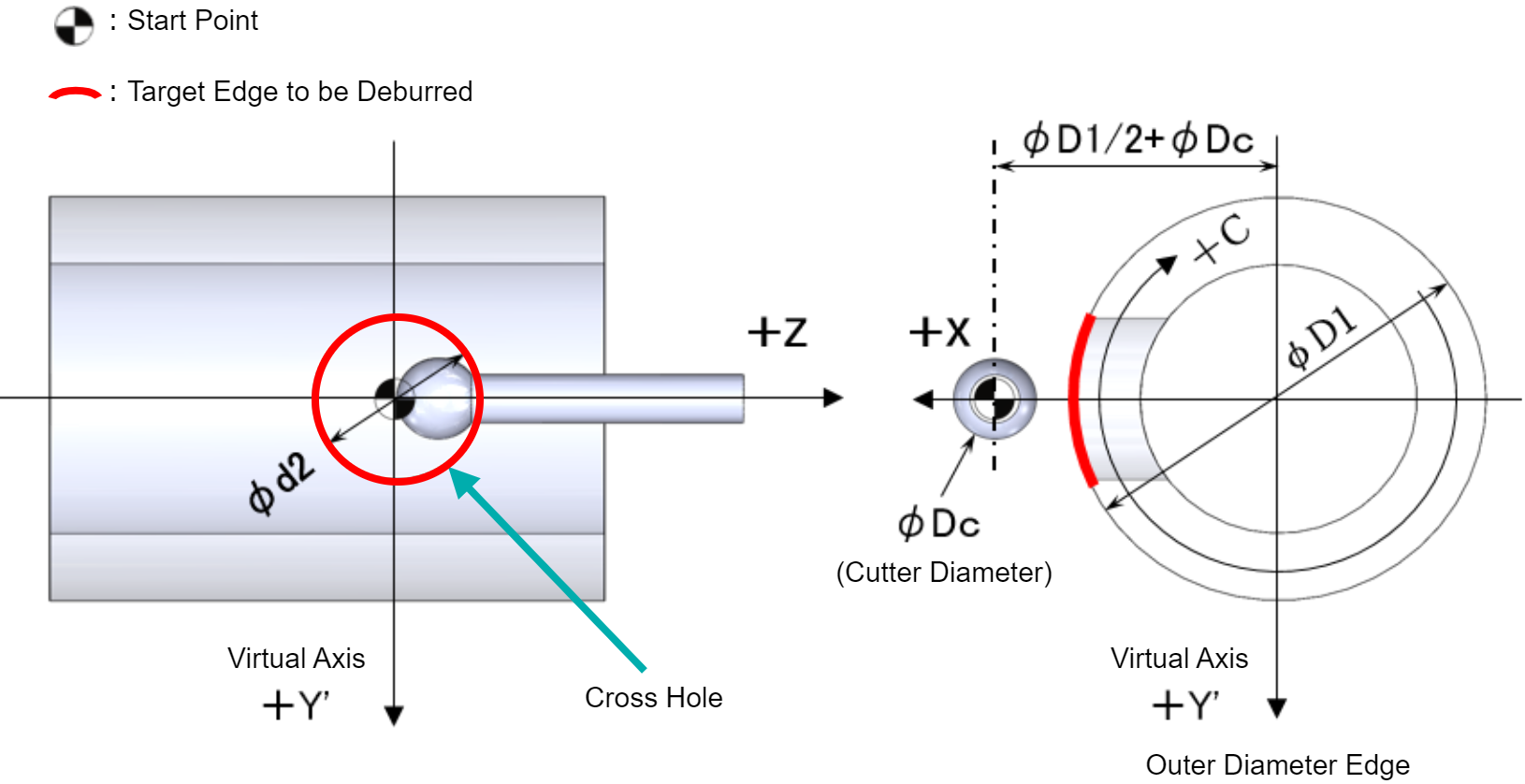

The X coordinate of the Start Point is at a position away from the outer diameter as described in the figure below. The Z coordinate aligns the Cutter tip with the cross hole center. Make sure to align the cross hole axis and the X-axis on the +X side.

Make sure to turn on polar interpolation when using XEBEC Path for XZC lathes.
