Type IY and JY: Slotted Hole Perpendicular with Main Bore Axis - Outer/Inner Diameter XZY Machine Axis

The Start Point is at the center of the Radius R in the YZ plane at the +Y side. Along the X-axis, it is as indicated in the figures below.

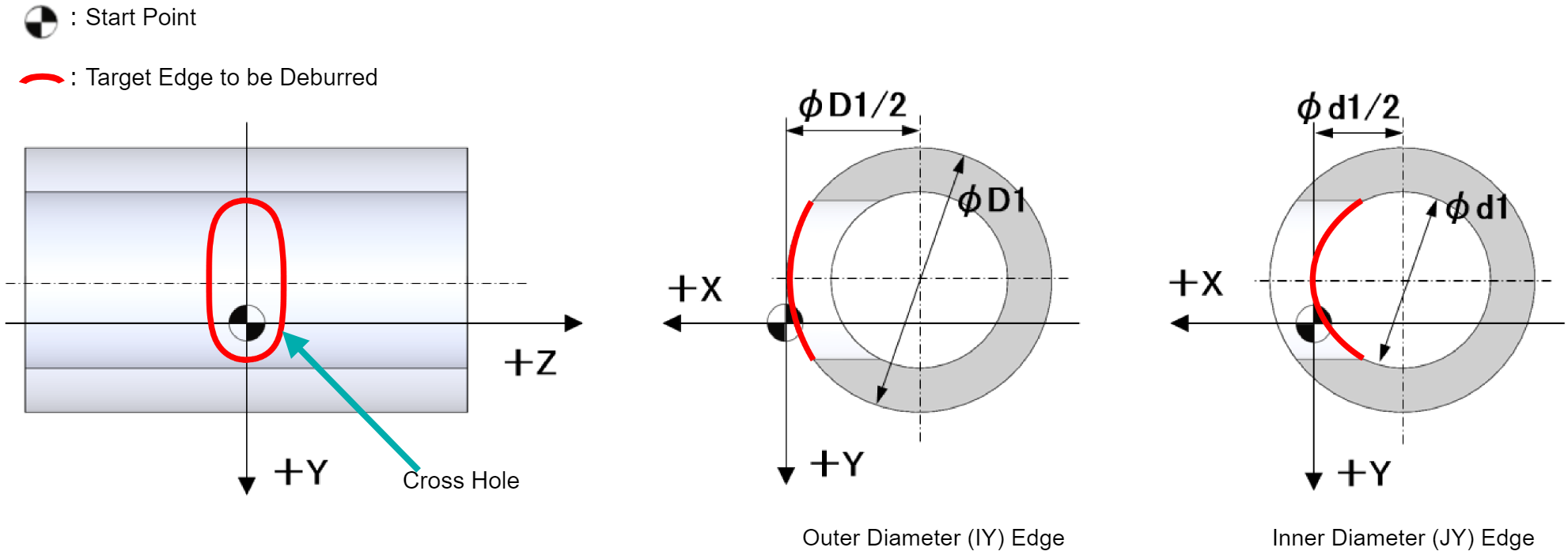

Example: Slotted Hole Perpendicular with Main Bore Axis - Outer/Inner Diameter
