Type BC: Orthogonal Cross Hole - Inner Diameter (Cross Hole ≦ Main Bore) XZC Machine Axis

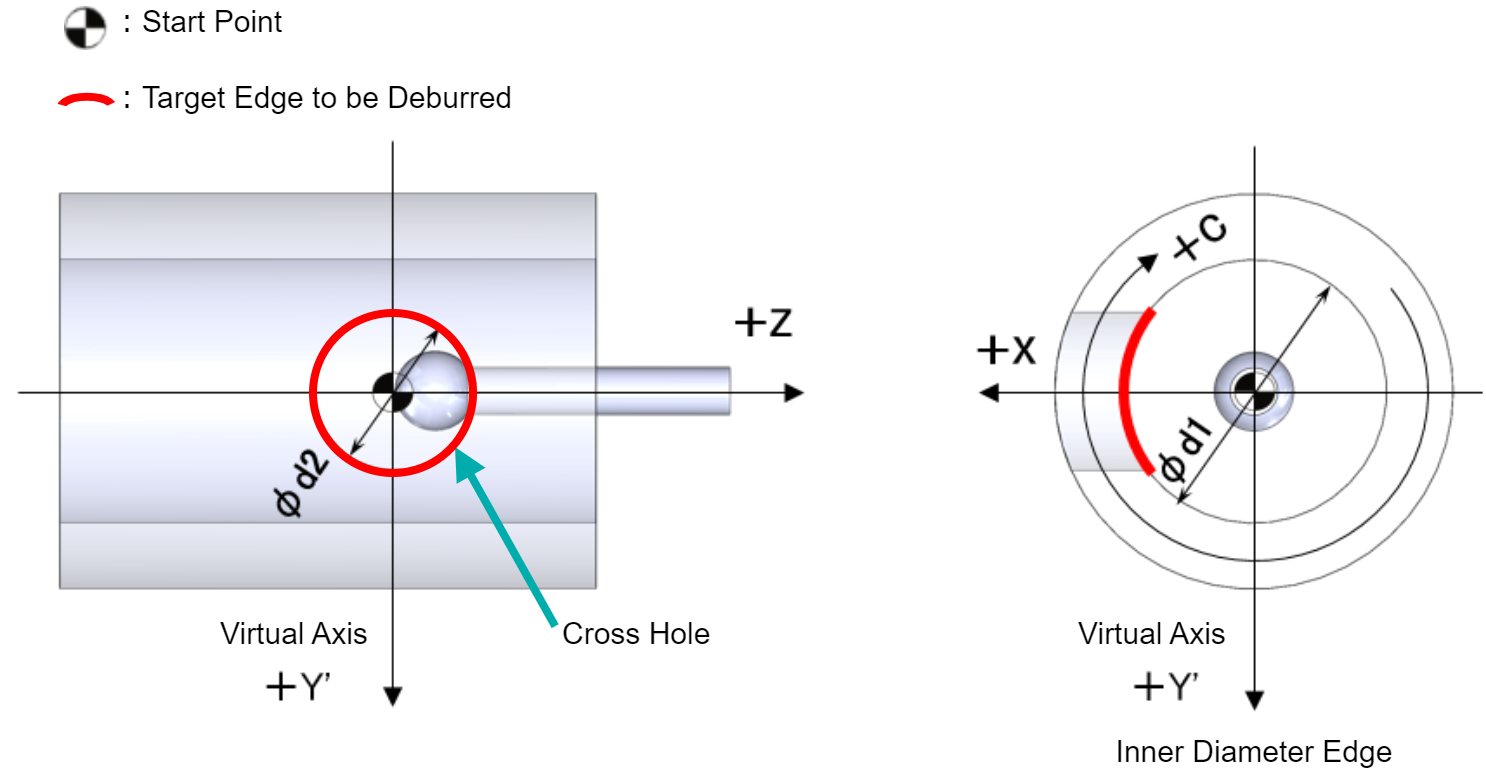

The X coordinate of the Start Point is at aligned with the main bore axis as described in the figure below. The Z coordinate aligns the Cutter tip with the cross hole center. Make sure to align the cross hole axis and the X-axis on the +X side.

Make sure to turn on polar interpolation when using XEBEC Path for XZC lathes.

Example: Orthogonal Cross Hole - Inner Diameter (Cross Hole ≦ Main Bore)

Make sure to align the cross hole axis and the X-axis on the +X side.
