Type GC and HC: Slotted Hole Parallel with Main Bore Axis - Outer/Inner Diameter XZC Machine Axis

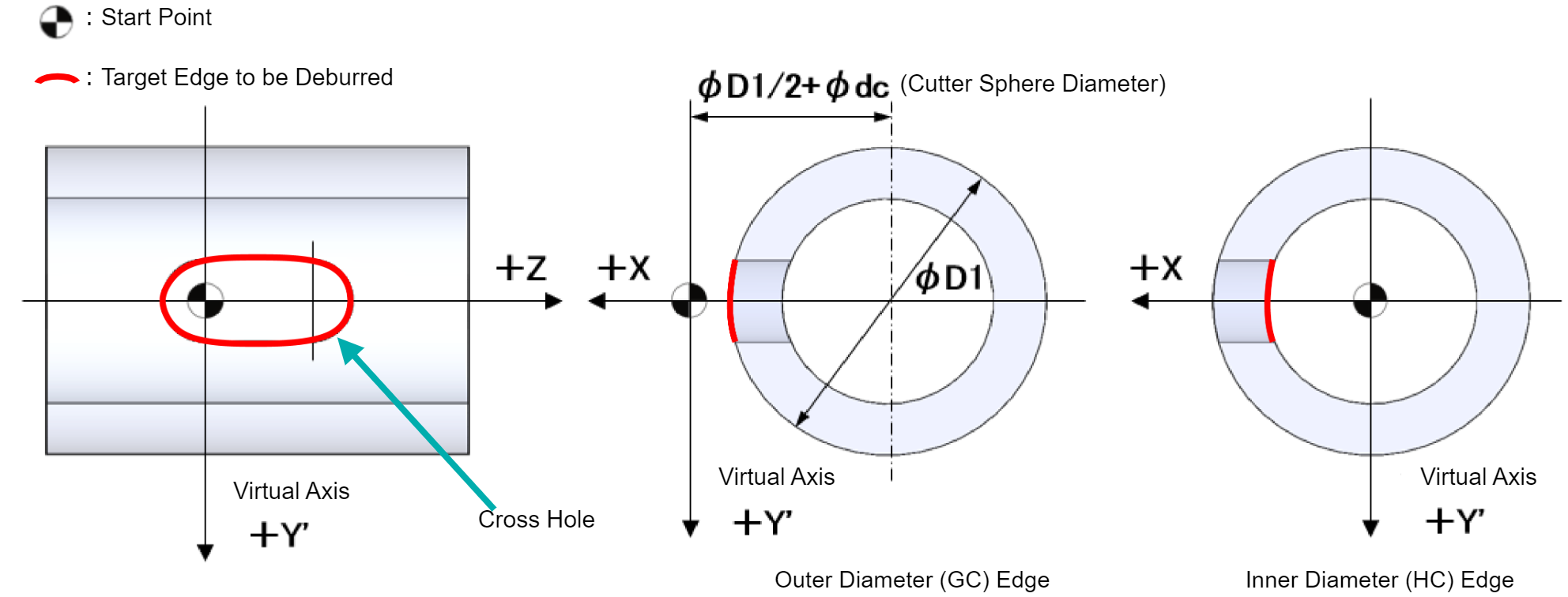

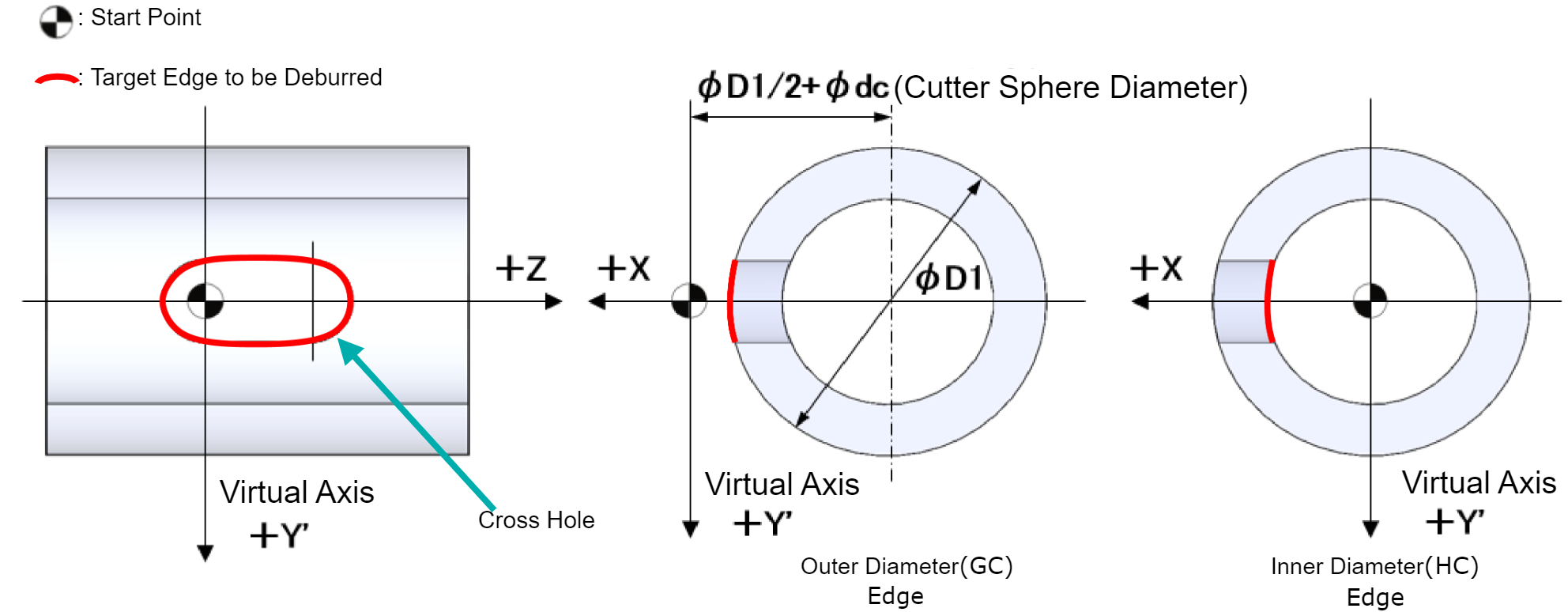

The X coordinate of the Start Point is at a position away from the outer diameter as described in the figure below. The Z coordinate aligns the Cutter tip with the center of the radius R. Make sure to align the cross hole axis and the X-axis on the +X side.
