Type AY: Orthogonal Cross Hole - Outer Diameter (Cross Hole < Outer Diameter) XZY Machine Axis

The Start Point is at the center of the Cross Hole in the YZ plane. Along the X-axis, it is as indicated in the figures below.

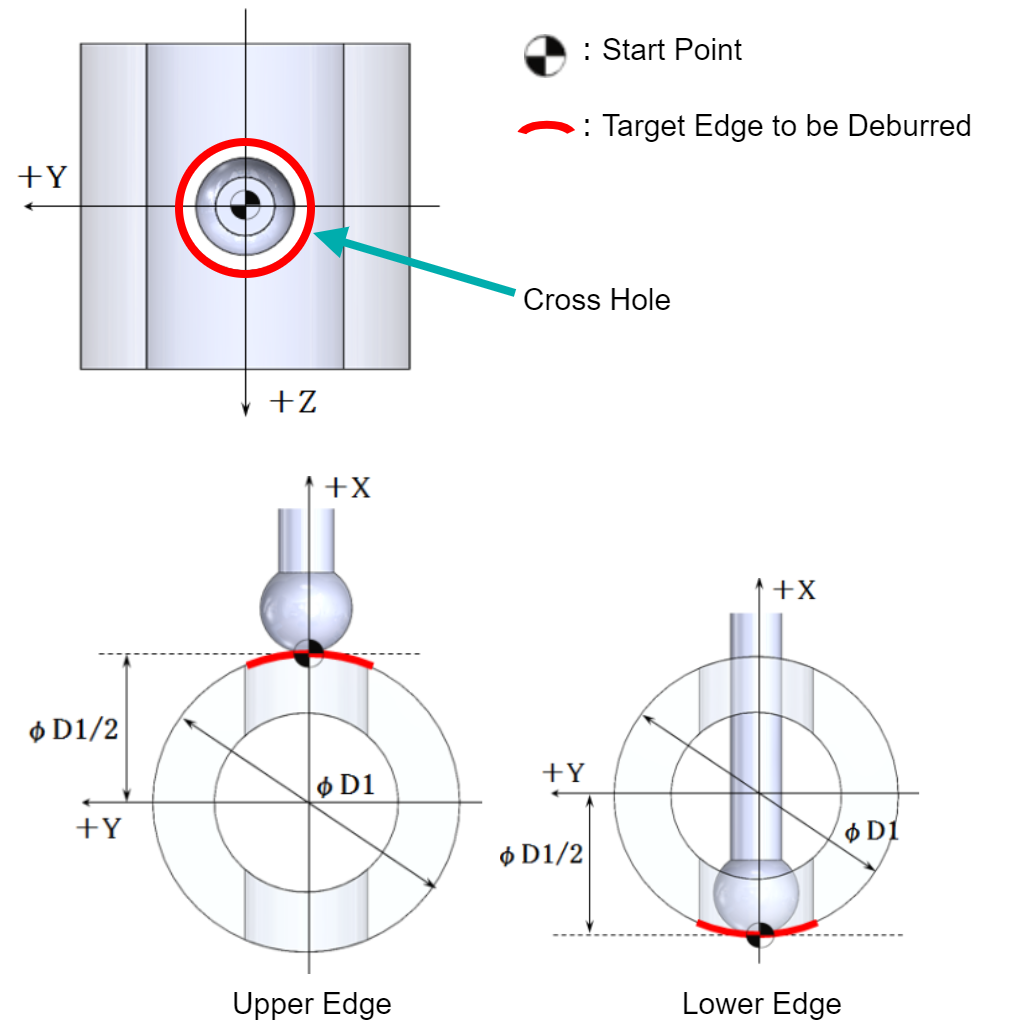

Example: On-center

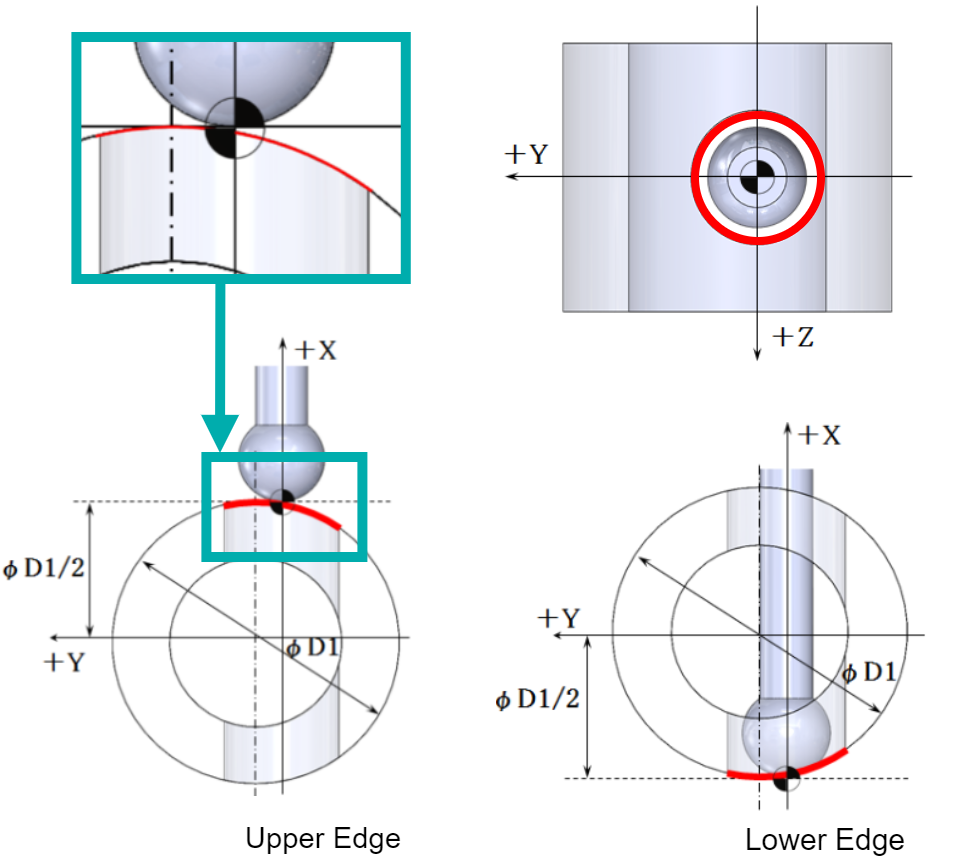

Example: Off-center
