XEBEC Back Burr Cutter Specifications


AlTiCrN Coated

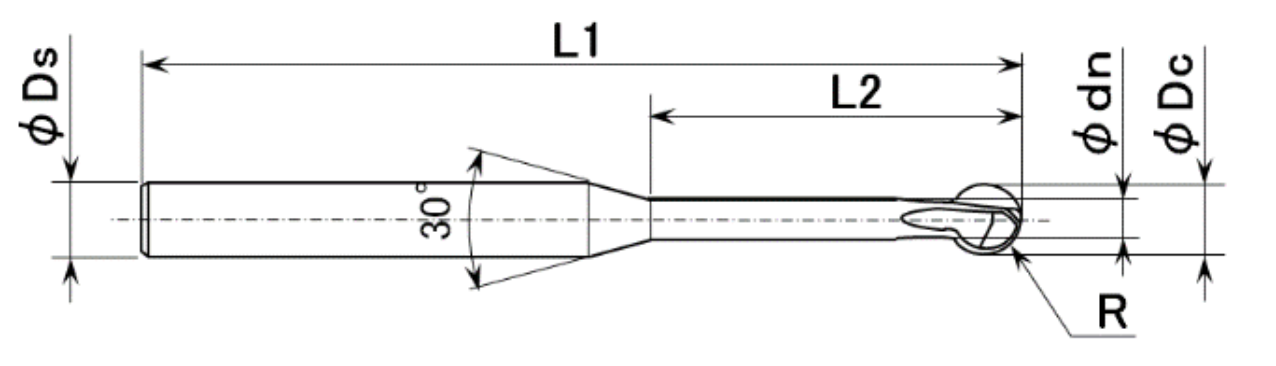

[Short / Regular Type]


Product Code
Cutter Radius R (mm)
Cutter Diameter ΦDc (mm)
Neck Diameter Φdn (mm)
Neck Length L2 (mm)
Overall
Length
L1 (mm)
Shank Diameter ΦDs (mm)
Number of Blades
Short Type
XC-08-AS-3F
0.4
0.8
0.48
3
60
3
3
XC-13-AS-3F
0.65
1.3
0.78
5
60
3
3
XC-18-AS-3F
0.9
1.8
1.1
6
60
3
3
XC-23-AS-3F
1.15
2.3
1.4
7.5
70
3
3
XC-28-AS-3F
1.4
2.8
1.7
9
70
4
3
XC-33-AS-3F
1.65
3.3
2.0
10.5
70
4
3
XC-38-AS-3F
1.9
3.8
2.4
12
70
4
3
XC-48-AS-3F
2.4
4.8
3.0
15
70
6
3
XC-58-AS-3F
2.9
5.8
3.5
18
70
6
3
XC-78-AS-3F
3.9
7.8
4.7
24
100
8
3
XC-98-AS-3F
4.9
9.8
5.9
30
120
10
3


Product Code
Cutter Radius
R (mm)
Cutter Diameter
ΦDc (mm)
Neck Diameter
Φdn (mm)
Neck Length
L2 (mm)
Overall Length
L1 (mm)
Shank Diameter
ΦDs (mm)
Number of Blades
Regular Type
XC-08-A
0.4
0.8
0.48
5
60
3
2
XC-13-A
0.65
1.3
0.78
8
60
3
2
XC-18-A
0.9
1.8
1.1
10
60
3
2
XC-23-A
1.15
2.3
1.4
12.5
70
3
2
XC-28-A
1.4
2.8
1.7
15
70
4
2
XC-33-A
1.65
3.3
2.0
17.5
70
4
2
XC-38-A
1.9
3.8
2.4
20
70
4
2
XC-48-A
2.4
4.8
3.0
25
70
6
2
XC-58-A
2.9
5.8
3.5
30
70
6
2
XC-78-A
3.9
7.8
4.7
40
100
8
3
XC-98-A
4.9
9.8
5.9
50
120
10
3



ALTiCrN Coated

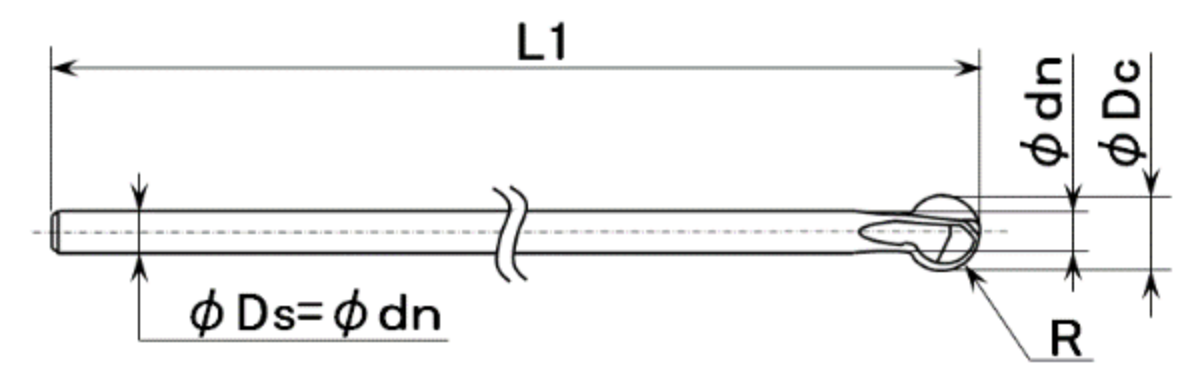

[Straight Type]


Product Code
Cutter Radius
R (mm)
Cutter Diameter
ΦDc (mm)
Neck Diameter
Φdn (mm)
Neck Length
L2 (mm)
Overall Length
L1 (mm)
Shank Diameter
ΦDs (mm)
Number of Blades
Straight Type
XC-18-B
0.9
1.8
1.1
-
50
1.1
2
XC-23-B
1.15
2.3
1.4
-
60
1.4
2
XC-28-B
1.4
2.8
1.7
-
70
1.7
2
XC-33-B
1.65
3.3
2.0
-
80
2.0
2
XC-38-B
1.9
3.8
2.4
-
85
2.4
2
XC-48-B
2.4
4.8
3.0
-
105
3.0
2
XC-58-B
2.9
5.8
3.5
-
120
3.5
2
XC-78-B
3.9
7.8
4.7
-
150
4.7
3
XC-98-B
4.9
9.8
5.9
-
180
5.9
3



Uncoated
[Regular Type]



Product Code
Cutter Radius
R (mm)
Cutter Diameter
ΦDc (mm)
Neck Diameter
Φdn (mm)
Neck Length
L2 (mm)
Overall Length
L1 (mm)
Shank Diameter
ΦDs (mm)
Number of Blades
Regular Type
XC-08-A-N
0.4
0.8
0.48
5
60
3
2
XC-13-A-N
0.65
1.3
0.78
8
60
3
2
XC-18-A-N
0.9
1.8
1.1
10
60
3
2
XC-23-A-N
1.15
2.3
1.4
12.5
70
3
2
XC-28-A-N
1.4
2.8
1.7
15
70
4
2
XC-33-A-N
1.65
3.3
2.0
17.5
70
4
2
XC-38-A-N
1.9
3.8
2.4
20
70
4
2
XC-48-A-N
2.4
4.8
3.0
25
70
6
2
XC-58-A-N
2.9
5.8
3.5
30
70
6
2
XC-78-A-N
3.9
7.8
4.7
40
100
8
3
XC-98-A-N
4.9
9.8
5.9
50
120
10
3
Cautions Regarding the Settings of XEBEC Back Burr Cutter
  • If this product is used without considering the risk of tool collision or if a wrong size tool is used, the product, jig, and machine may be damaged. Therefore, make sure to check the dimensions before use.
  • Make sure to set the tool projection length appropriately for the workpiece when clamping this product with a milling tool holder.
  • Clamp this product firmly with the milling tool holder so that it does not move during use.
  • Make sure the tool runout is less than 0.01mm after the tool is clamped in the milling tool holder.
  • Set the tool length offset at the tip of this product to ensure that the tool path works as it is designed to. ▶ Tool Length Offset
  • To prevent tool collision, minimize positional error and dimensional variance of holes to be deburred and make sure to position this product correctly.
