Type BY: Orthogonal Cross Hole - Inner Diameter (Cross Hole ≦ Main Bore) XZY Machine Axis

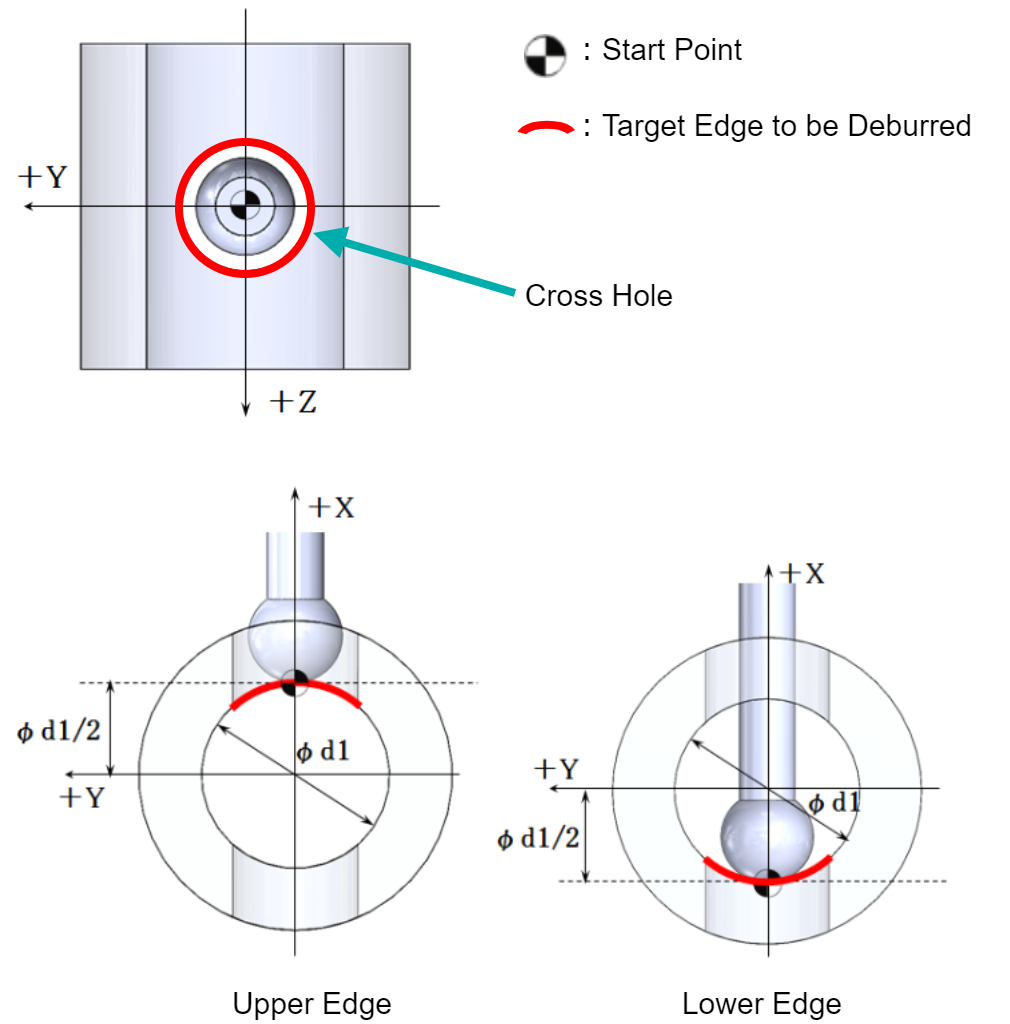

The Start Point is at the center of the Cross Hole in the YZ plane. Along the X-axis, it is as indicated in the figures below.

Example: On-center

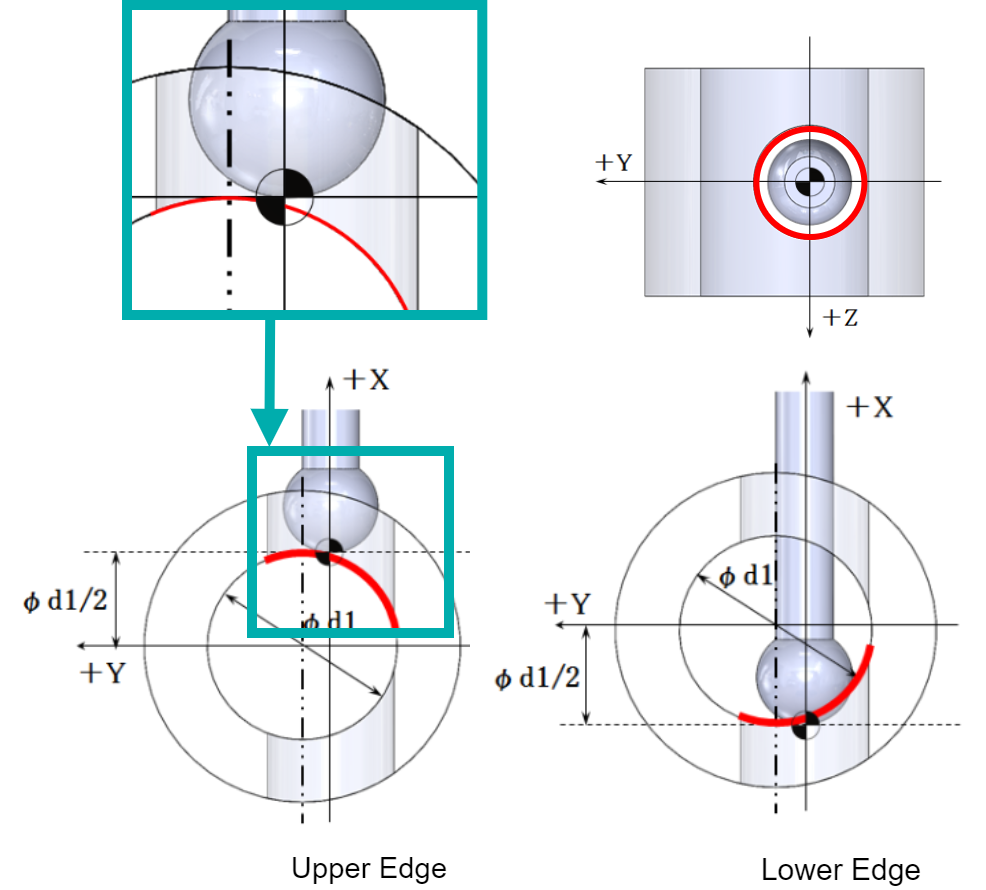

Example: Off-center
