Type KC: Orthogonal Cross Hole - Inner Diameter (Cross Hole ＞ Main Bore) XZC Machine Axis

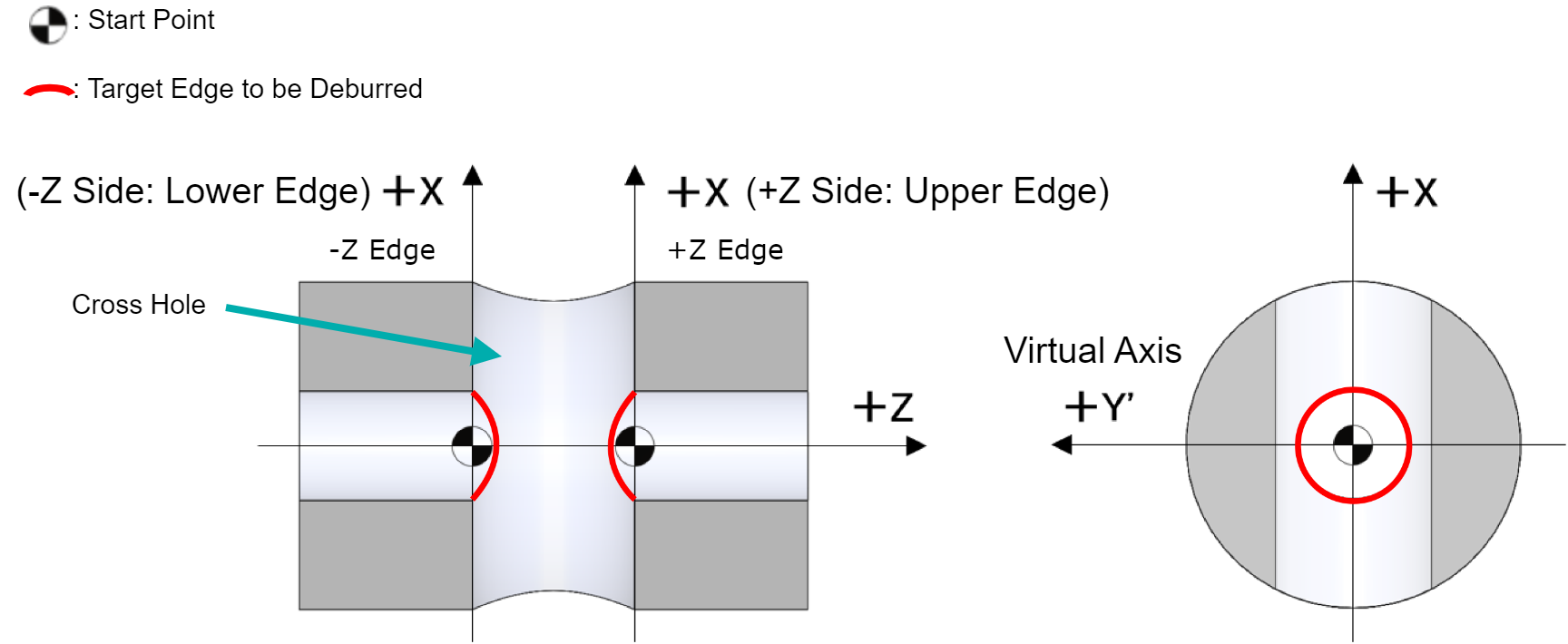

The Start Point along the X-axis is at the center of the Main Bore. Along the Z-axis, it is as indicated in the figures below. Make sure to align the cross hole axis and the X-axis.

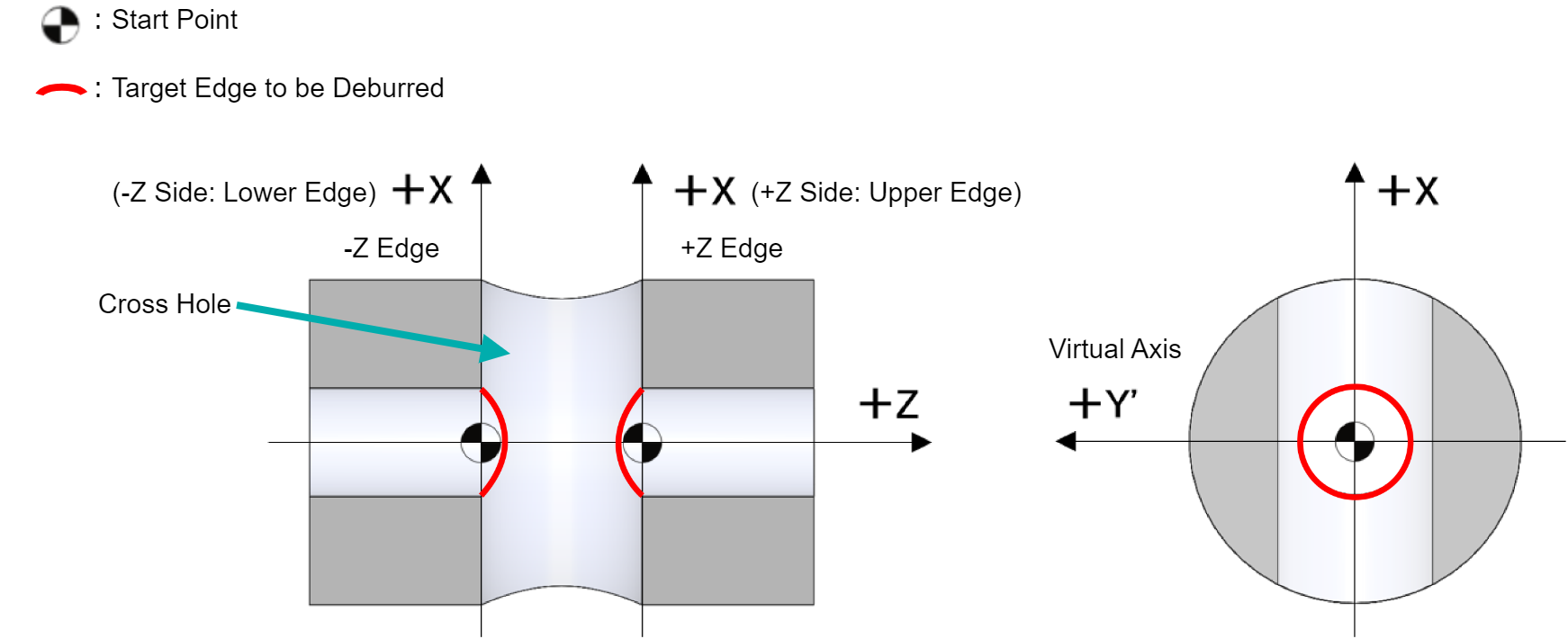

Example: Orthogonal Cross Hole - Inner Diameter (Cross Hole ＞ Main Bore)

Make sure to align the cross hole axis and the X-axis.
