Type K: Orthogonal Cross Hole Aligned with X-axis (ar=90°/-90°)

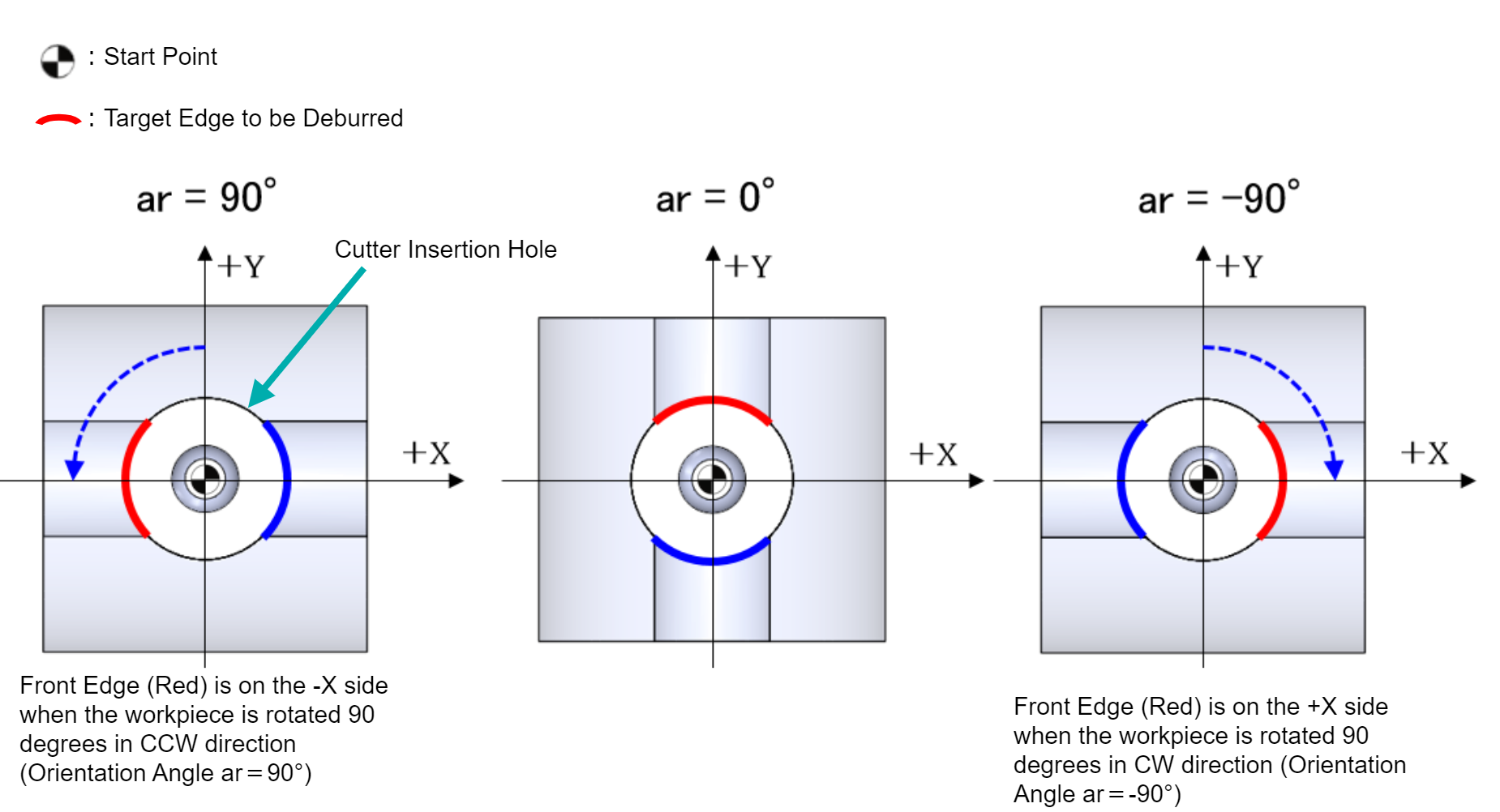

Assuming that the cross hole is aligned with the Y-axis (Orientation Angle ar=0°), Front Edge (Red) is defined as the edge that is on the +Y side and Rear Edge (Blue) is the edge on the -Y side as shown in the example below.
The relationship between Front (Red) /Rear (Blue) Edges and the orientation angle are also shown.
Example: Cross Hole Axis Aligned with X-axis
XEBEC Path Specifications
Specifications are indicated at the top of the text file in parentheses ( )
Specifications |
Descriptions |
(INNER-1D8.-2D20.-T5.8-AR90.-E3.) | INNER: Inner Edge [ OUTER: Outer Edge ] 1D8: Cross Hole Diameter Φ8mm 2D20: Cutter Insertion Hole Diameter Φ20mm T5.8: Cutter Diameter Φ5.8mm AR90: Cross Hole Orientation Angle 90° E3: Offset +3mm from the Cross Hole Axis |
(EDGE BREAK AMOUNT 0.30) | Deburring Amount 0.30mm |
(FRONT EDGE) | Front Edge [ REAR EDGE: Rear Edge ] |
(INC) | Positioning Format: Incremental [ ABS: Absolute ] |
(DOWN CUT) | Down Cut Machining [ UP CUT: Up Cut Machining ] |
