Type D and E: Angled Cross Hole (On-center)- Outer/Inner Diameter

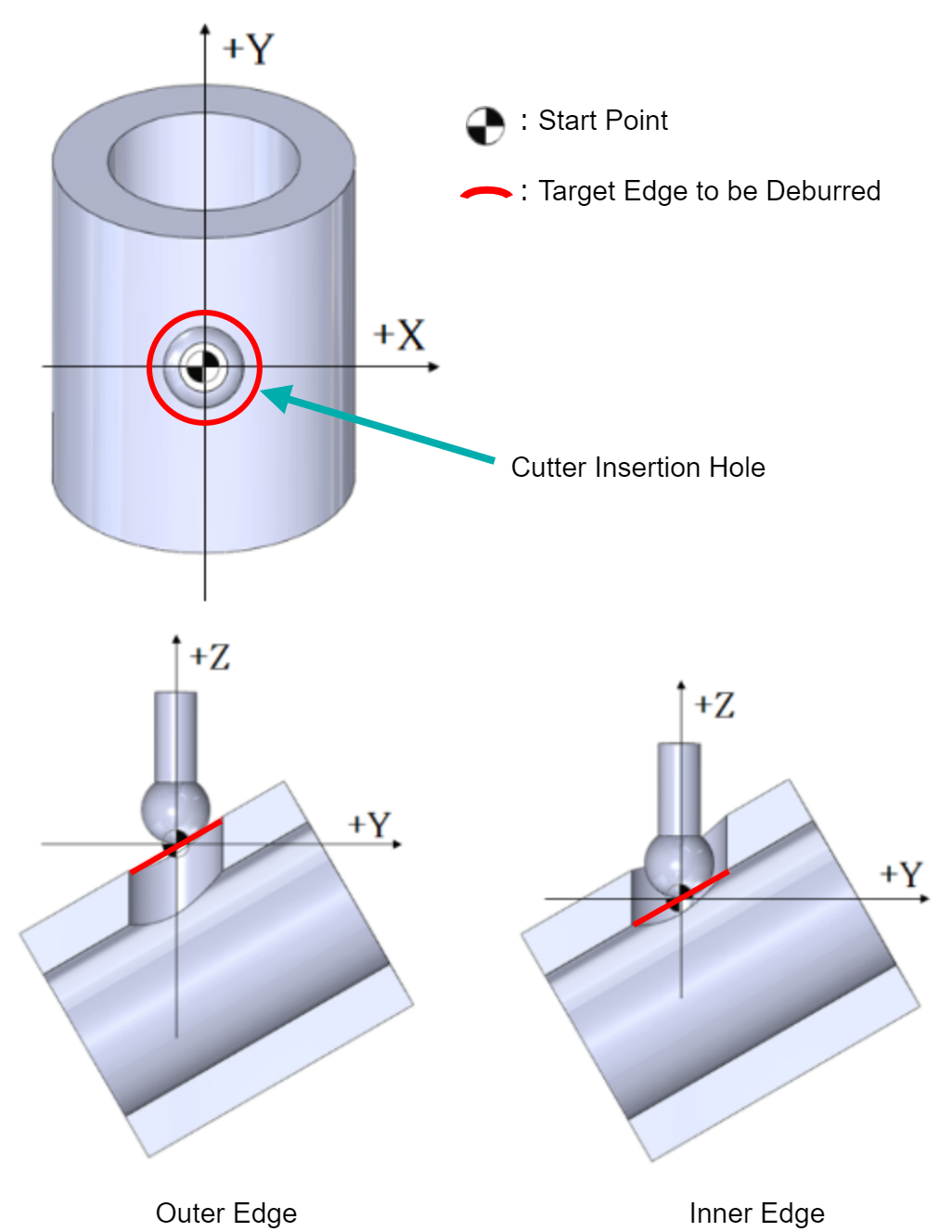

The Start Point is at the center of the Cutter Insertion Hole in the XY plane. Along the Z-axis, it is at the intersection of the Cutter Insertion Hole axis and the outer/inner diameter.

XEBEC Path for absolute positioning (ABS) is generated with the Start Point position as the machine zero point (X0Y0Z0).

Example: Angled Cross Hole (On-center)

Machining Parameters

To minimize the risk of secondary burrs, keep the tool projection length as short as possible. In case secondary burrs form, reduce the feed rate to 50% of the standard machining parameter and work with the smallest deburring amount (edge break length).

XEBEC Path Specifications

Specifications are indicated at the top of the text file in parentheses ( )

Specifications	Descriptions
(INNER-1D20-2D10-T5.8-AR0-E0-AA60.)	INNER: Inner Edge [ OUTER: Outer Edge] 1D20: Cross Hole 1D Diameter Φ20mm 2D10: Cutter Insertion Hole 2D Diameter Φ10mm T5.8: Cutter Diameter Φ5.8mm AR0: Cross Hole Orientation Angle 0° AA60: Inclination Angle +60° E0: Offset 0mm from the Cross Hole Axis
(EDGE BREAK AMOUNT 0.10)	Deburring Amount 0.10mm
(UPPER EDGE)	Type D Upper Edge [ LOWER: Type E Lower Edge ]
(INC)	Positioning Format: Incremental [ ABS: Absolute ]
(DOWN CUT)	Down Cut Machining [ UP CUT: Up Cut Machining ]
