Type B: Orthogonal Cross Hole - Inner Diameter (Cutter Insertion Hole ≦ Cross Hole)

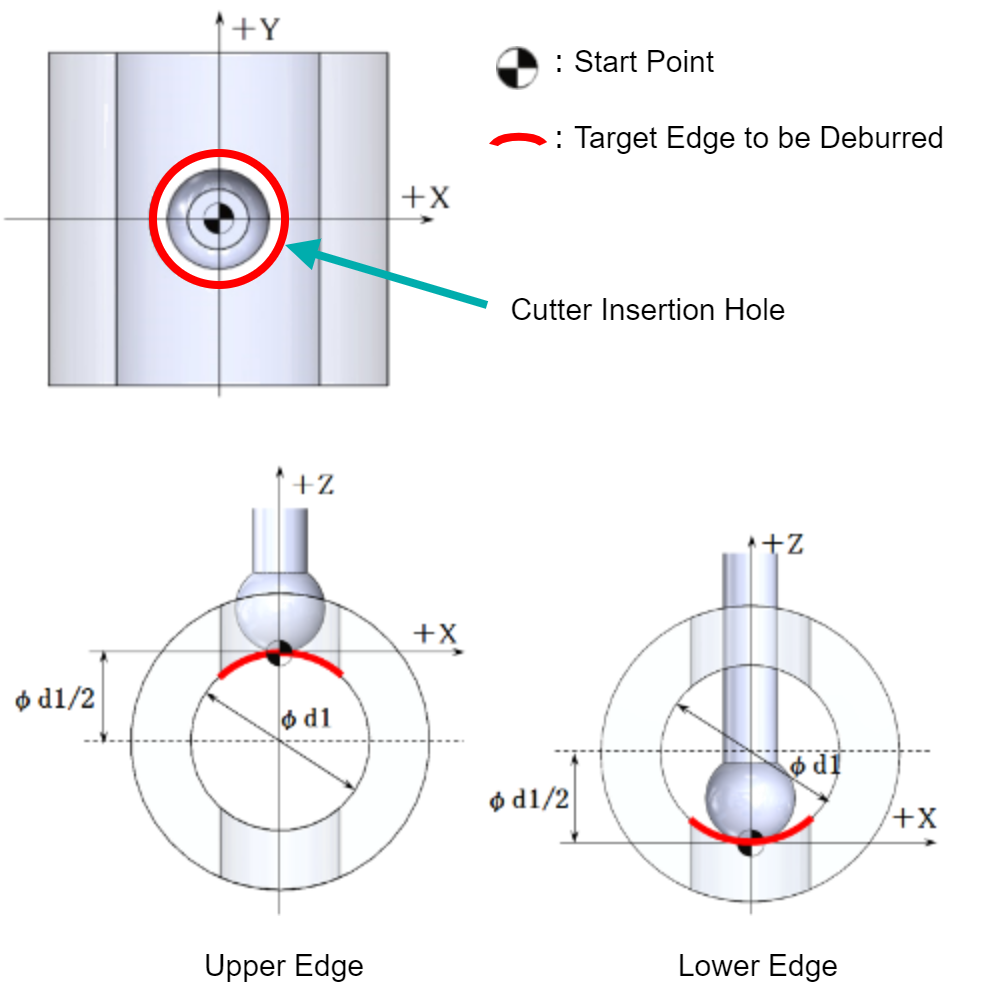

The Start Point is at the center of the Cutter Insertion Hole in the XY plane. Along the Z-axis, it is at an offset position away from the centerline by one half the diameter D1.

XEBEC Path for absolute positioning (ABS) is generated with the Start Point position as the machine zero point (X0Y0Z0).

Example: Orthogonal Cross Hole On-Center

Example: Orthogonal Cross Hole Off-Center

XEBEC Path Specifications

Specifications are indicated at the top of the text file in parentheses ( )
