Type A: Orthogonal Cross Hole - Outer Diameter (Cutter Insertion Hole < Outer Diameter)

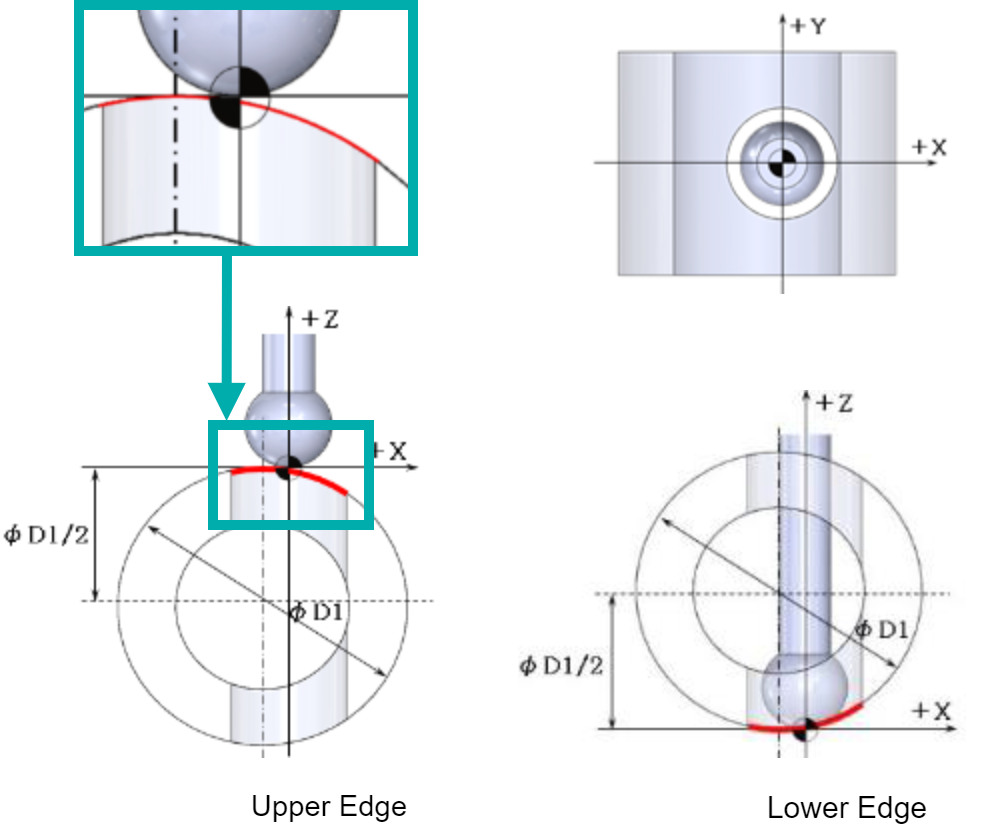

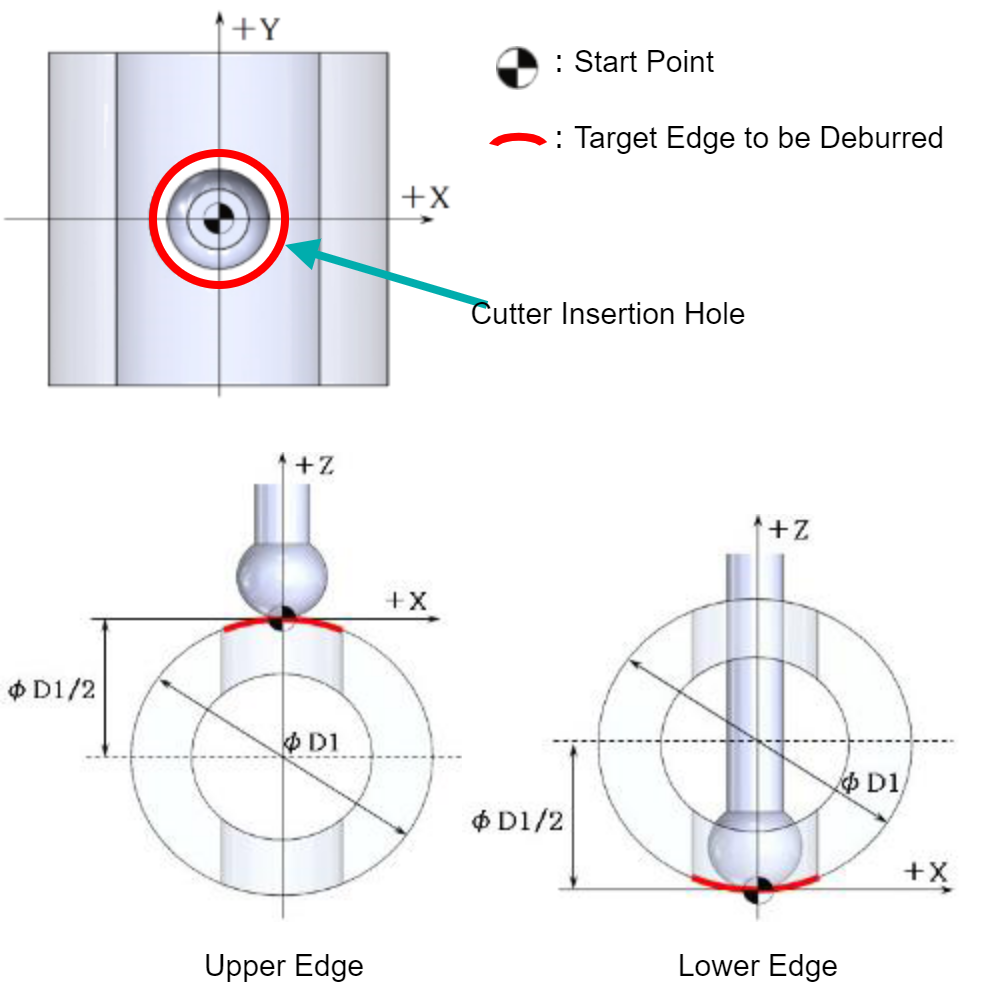

The Start Point is at the center of the Cutter Insertion Hole in the XY plane. Along the Z-axis, it is at an offset position away from the centerline by one half the diameter D1.

XEBEC Path for absolute positioning (ABS) is generated with the Start Point position as the machine zero point (X0Y0Z0).

Example: Orthogonal Cross Hole On-Center

Example: Orthogonal Cross Hole Off-Center

XEBEC Path Specifications

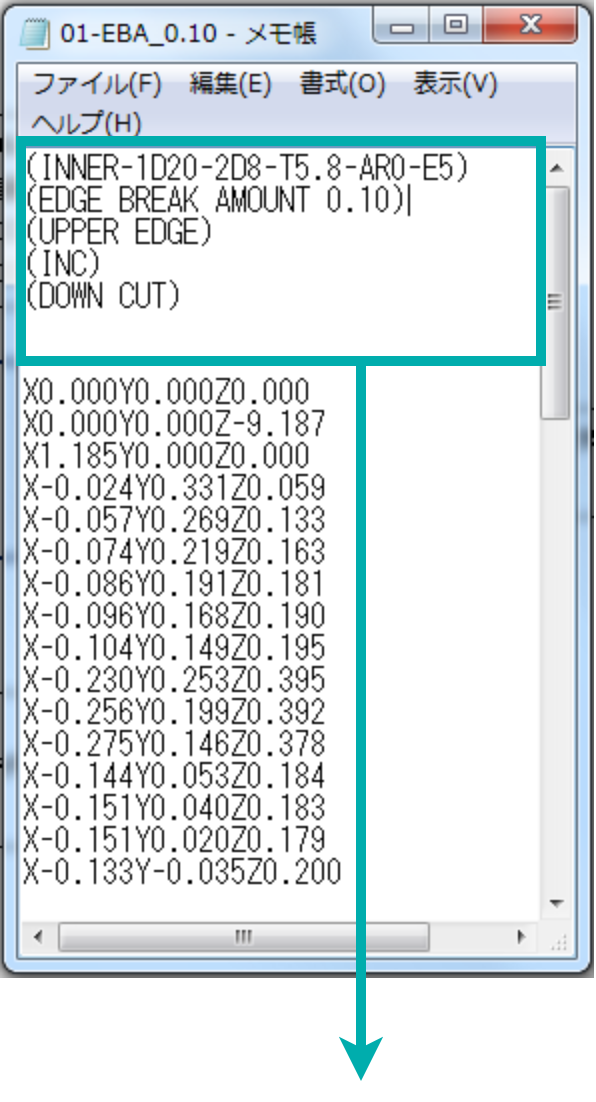

Specifications are indicated at the top of the text file in parentheses ( )

Specifications	Descriptions
(INNER-1D20-2D10-T5.8-AR0-E5)	INNER: Inner Edge [ OUTER: Outer Edge] 1D20: Cross Hole 1D Diameter Φ20mm 2D10: Cutter Insertion Hole 2D Diameter Φ10mm T5.8: Cutter Diameter Φ5.8mm AR0: Cross Hole Orientation Angle 0° E5: Offset +5mm from the Cross Hole Axis
(EDGE BREAK AMOUNT 0.10)	Deburring Amount 0.10mm
(UPPER EDGE)	Upper Edge [ LOWER: Lower Edge]
(INC)	Positioning Format: Incremental [ ABS: Absolute ]
(DOWN CUT)	Down Cut Machining [ UP CUT: Up Cut Machining ]
