Type G and H: Slotted Hole Parallel with Cross Hole Axis Aligned with X-axis (ar＝90°/-90°)

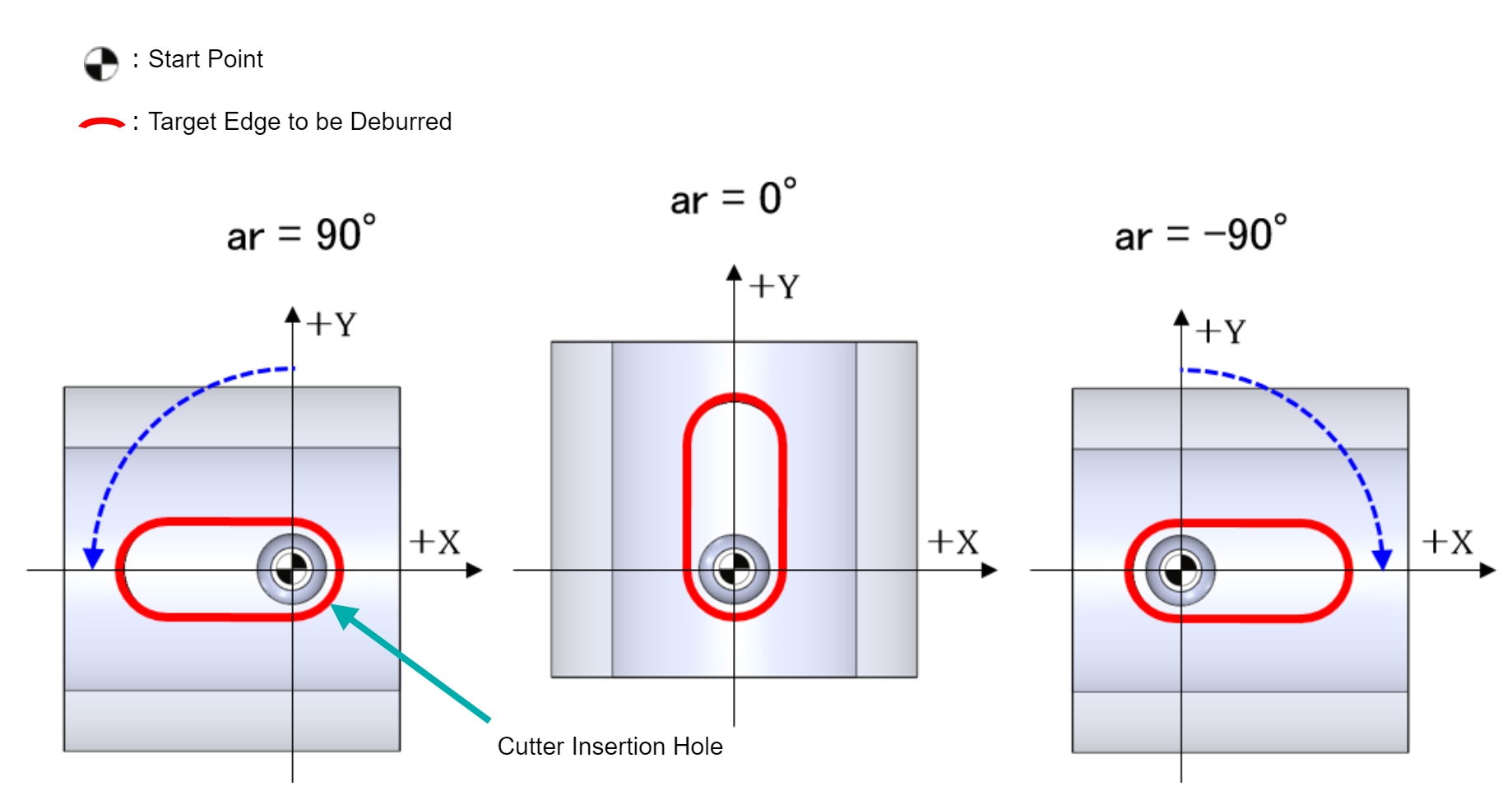

When the orientation angle (ar) is 90°, the Start Point is at the center of the Radius R in the XY plane at the +X side. When the orientation angle (ar) is -90°, the Start Point is at the -X side. The Z coordinate is at the highest point of the Outer/Inner Diameter. These apply regardless of whether the Slotted Hole is On-center or Off-center.

XEBEC Path for absolute positioning (ABS) is generated with the Start Point position as the machine zero point (X0Y0Z0).

Example: Slotted Hole Parallel with Cross Hole Axis Aligned with X-axis

XEBEC Path Specifications

Specifications are indicated at the top of the text file in parentheses ( )

Specifications	Descriptions
(INNER-1D20-2D8-T5.8-AR90-E3-L10.)	INNER: Inner Edge [ OUTER: Outer Edge] 1D20: Cross Hole 1D Diameter Φ20mm 2D8: Cutter Insertion Hole 2D Diameter Φ8mm T5.8: Cutter Diameter Φ5.8mm AR90: Cross Hole Orientation Angle 90° E3: Offset +3mm from the Cross Hole Axis L10: Length Between R Centers 10mm
(EDGE BREAK AMOUNT 0.30)	Deburring Amount 0.30mm
(UPPER EDGE)	Upper Edge [ Lower Edge not applicable with Types G & H ]
(INC)	Positional Format: Incremental [ ABS: Absolute ]
(DOWN CUT)	Down Cut Machining [ UP CUT: Up Cut Machining ]
