Type C: Flat Surface Hole

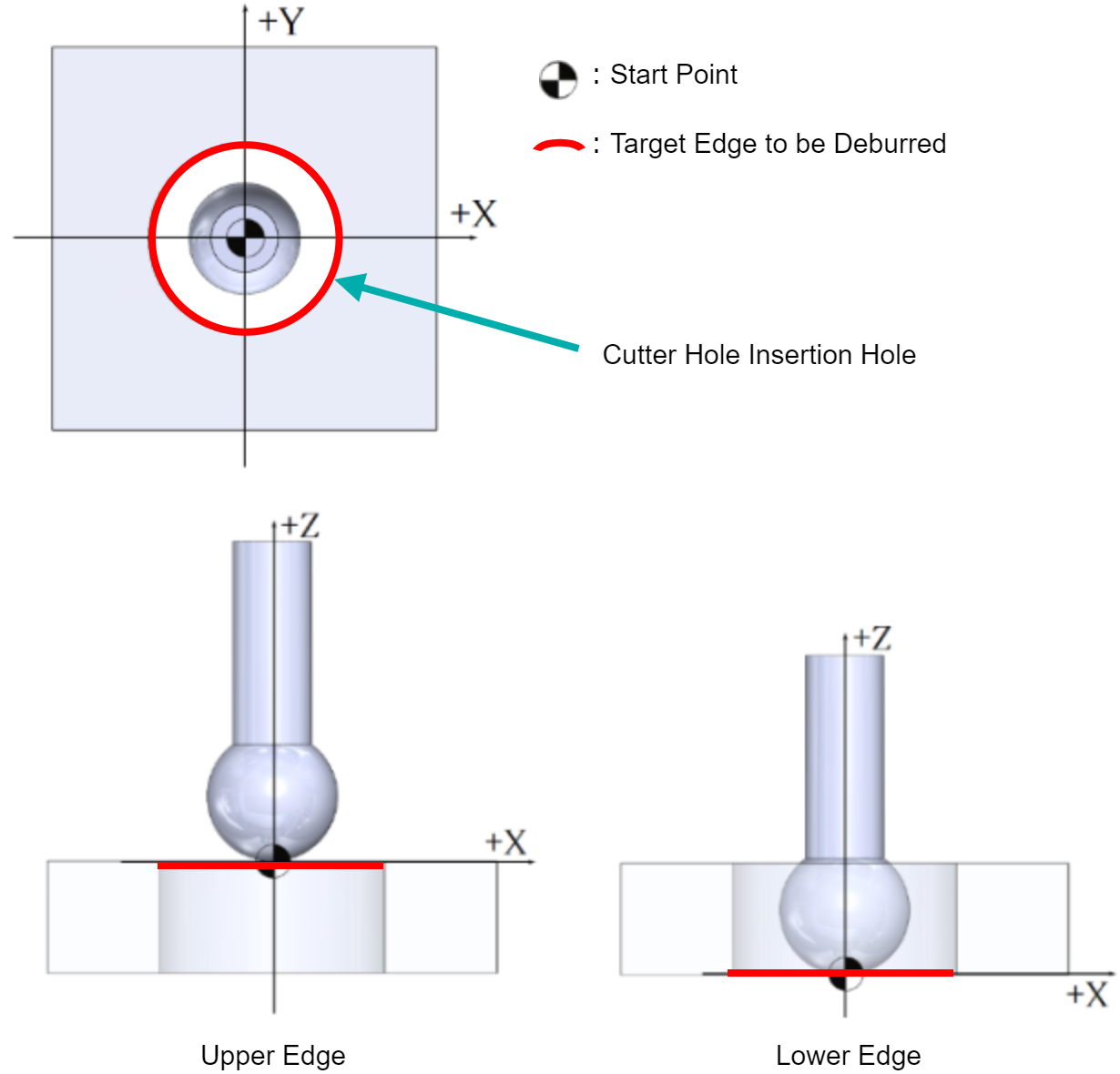

The Start Point is at the center of the Cutter Insertion Hole in the XY plane. For Upper Edge, the Z coordinate is aligned with the top surface (for Lower Edge, with the back surface).
XEBEC Path for absolute positioning (ABS) is generated with the Start Point position as the machine zero point (X0Y0Z0).
Example: Flat Surface Hole
XEBEC Path Specifications
Specifications are indicated at the top of the text file in parentheses ( )
Specifications |
Descriptions |
(2D10-T5.8) |
2D10: Cutter Insertion Hole 2D Diameter Φ10mm T5.8: Cutter Diameter Φ5.8mm |
| (EDGE BREAK AMOUNT 0.10) | Deburring Amount 0.10mm |
| (BACK EDGE) | The Edge at the Backside [ FRONT: The Edge at the Front Side ] |
| (INC) | Positional Format: Incremental [ ABS: Absolute ] |
| (DOWN CUT) | Down Cut Machining [ UP CUT: Up Cut Machining ] |
