Type I and J: Slotted Hole Perpendicular with Cross Hole Axis (Off-center) - Outer/Inner Diameter

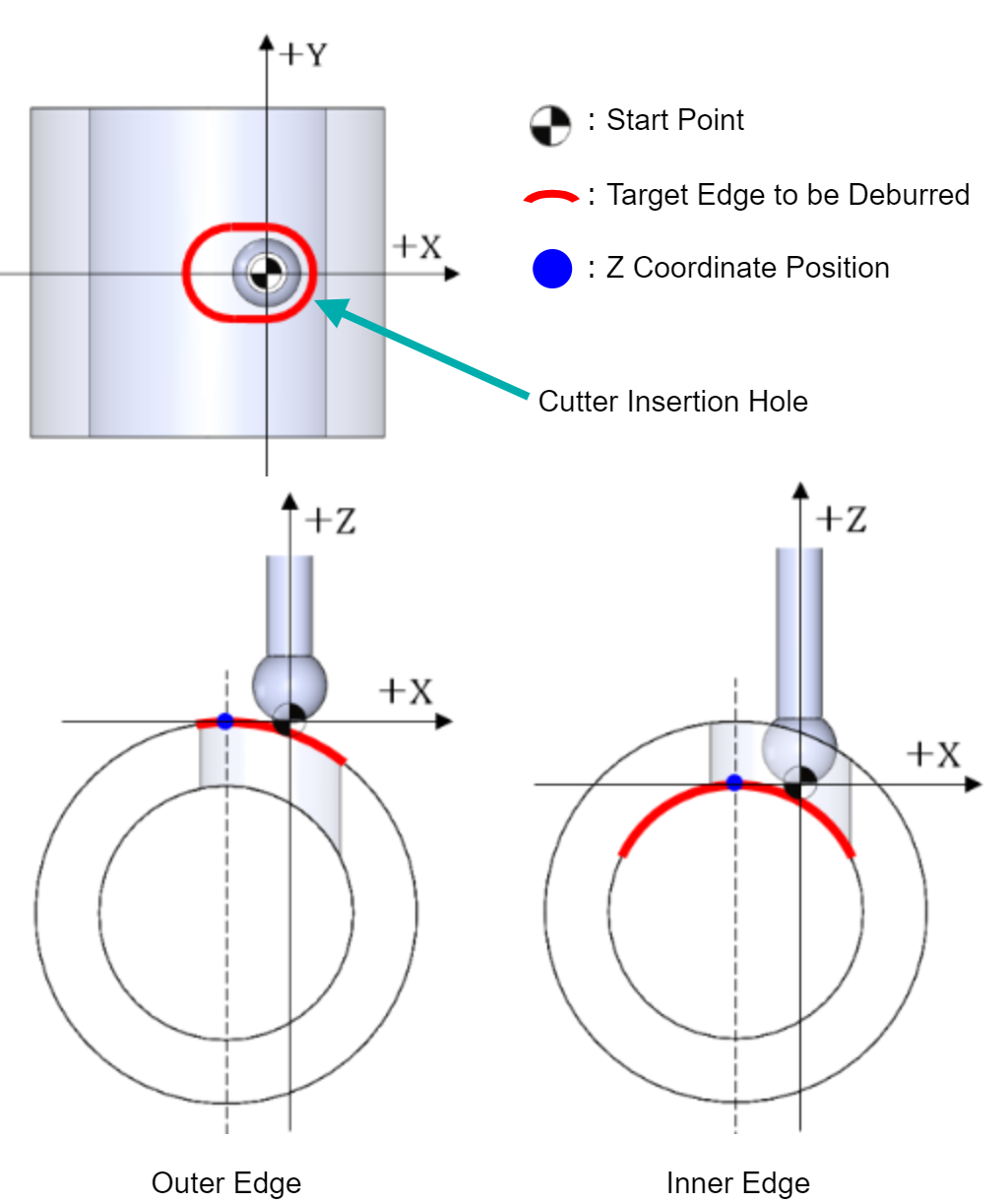

When the orientation angle (ar) is 0°, the Start Point is at the center of the Radius R in the XY plane at the +X side. The Z coordinate is at the highest point of the Outer/Inner Diameter.

XEBEC Path for absolute positioning (ABS) is generated with the Start Point position as the machine zero point (X0Y0Z0).


Example: Slotted Hole Perpendicular with Cross Hole Axis (Off-center)



XEBEC Path Specifications

Specifications are indicated at the top of the text file in parentheses ( )

Specifications
Descriptions
(INNER-1D20-2D8-T5.8-AR90-E1-L10.)

INNER: Inner Edge  [ OUTER: Outer Edge]
1D20: Cross Hole 1D Diameter Φ20mm
2D8: Cutter Insertion Hole 2D Diameter Φ8mm
T5.8: Cutter Diameter Φ5.8mm
AR90: Cross Hole Orientation Angle 90°
E1: Offset +1mm from the Cross Hole Axis
L10: Length Between R Centers 10mm

(EDGE BREAK AMOUNT 0.30) Deburring Amount 0.30mm
(UPPER EDGE) Upper Edge  [ Lower Edge not applicable with Types I & J ]
(INC) Positional Format: Incremental [ ABS: Absolute ]
(DOWN CUT) Down Cut Machining  [ UP CUT: Up Cut Machining ]
