Type K: Orthogonal Cross Hole - Inner Diameter (Cutter Insertion Hole > Cross Hole)

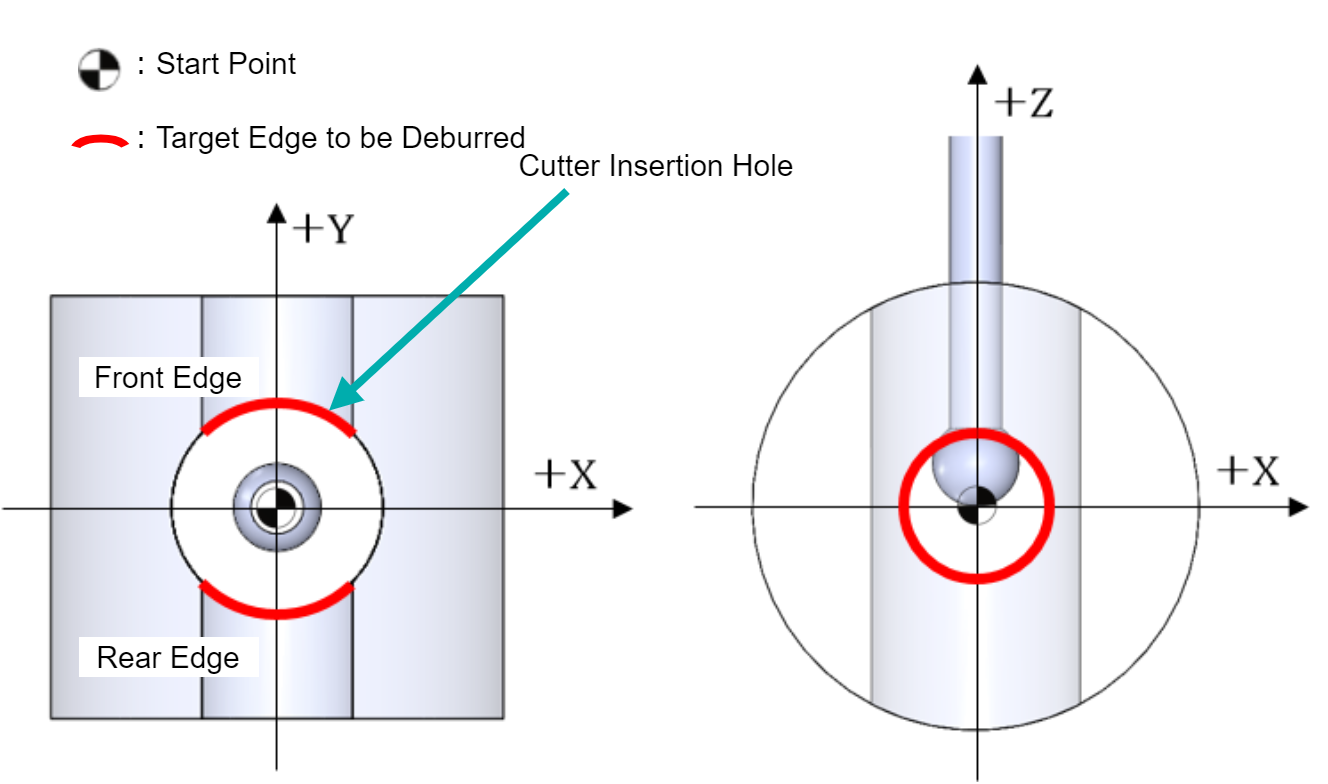

The Start Point is at the center of the Cutter Insertion Hole in the XY plane. Along the Z-axis, it is at the center of the Cross Hole.
XEBEC Path for absolute positioning (ABS) is generated with the Start Point position as the machine zero point (X0Y0Z0).
Example: Orthogonal Cross Hole - Inner Diameter (Cutter Insertion Hole > Cross Hole)
![]() |
Machining Parameters To minimize the risk of secondary burrs, keep the tool projection length as short as possible. In case secondary burrs form, reduce the feed rate to 50% of the standard machining parameter and work with the smallest deburring amount (edge break length). |
XEBEC Path Specifications
Specifications are indicated at the top of the text file in parentheses ( )
Specifications |
Descriptions |
(INNER-1D8.-2D20.-T5.8-AR90.-E3.) ; | INNER: Inner Edge [ OUTER: Outer Edge ] 1D8: Cross Hole Diameter Φ8mm 2D20: Cutter Insertion Hole Diameter Φ20mm T5.8: Cutter Diameter Φ5.8mm AR90: Cross Hole Orientation Angle 90° E3: Offset +3mm from the Cross Hole Axis |
(EDGE BREAK AMOUNT 0.30); | Deburring Amount 0.30mm |
(FRONT EDGE); | Front Edge [ REAR EDGE: Rear Edge ] |
(INC) ; | Positioning Format: Incremental [ ABS: Absolute ] |
(DOWN CUT); | Down Cut Machining [ UP CUT: Up Cut Machining ] |
