Type N: Angled Cross Hole Inner Diamater (Off-center) - (Cutter Insertion Hole > Cross Hole)

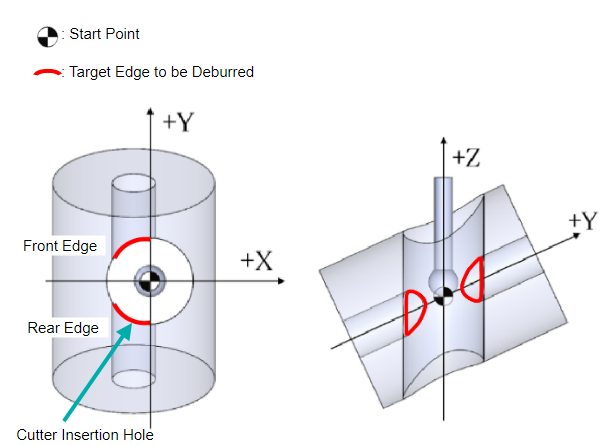

The Start Point is at the center of the Cutter Insertion Hole in the XY plane. Along the Z-axis, it is it is at the intersection of the axes of Cutter Insertion Hole and the Cross Hole.
XEBEC Deburring Tool Path for absolute positioning (ABS) is generated with the Start Point position as the machine zero point (X0Y0Z0).


Example: Angled Cross Hole (Off-Center) - Inner Diameter

  • Machining Parameters
    To minimize the risk of secondary burrs, keep the tool projection length as short as possible. In case secondary burrs form, reduce the feed rate to 50% of the standard machining parameter and work with the smallest deburring amount (edge break length).

  • Front Edge, Rear Edge
    Refer to the link below for definitions of Front Edge and Rear Edge.
    ▶Type K: Orthogonal Cross Hole Aligned with X-axis (ar＝90°/-90°)



XEBEC Deburring Tool Path Specifications

Specifications are indicated at the top of the text file in parentheses ( )

Specifications
Descriptions
(INNER-1D8-2D20-T5.8-AR0-E4.5-AA60.) INNER: Inner Edge
1D20: Cross Hole 1D Diameter Φ8mm
2D10: Cutter Insertion Hole 2D Diameter Φ20mm
T5.8: Cutter Diameter Φ5.8mm
AR0: Cross Hole Orientation Angle 0°
AA60: Inclination Angle +60°
E4.5: Offset +4.5mm from the Cross Hole Axis
(EDGE BREAK AMOUNT 0.10) Deburring Amount 0.10mm
(FRONT EDGE) Front Edge [REAR EDGE: Rear Edge]
(INC) Positioning Format: Incremental [ABS: Absolute]
(DOWN CUT) Down Cut Machining [UP CUT: Up Cut Machining]
