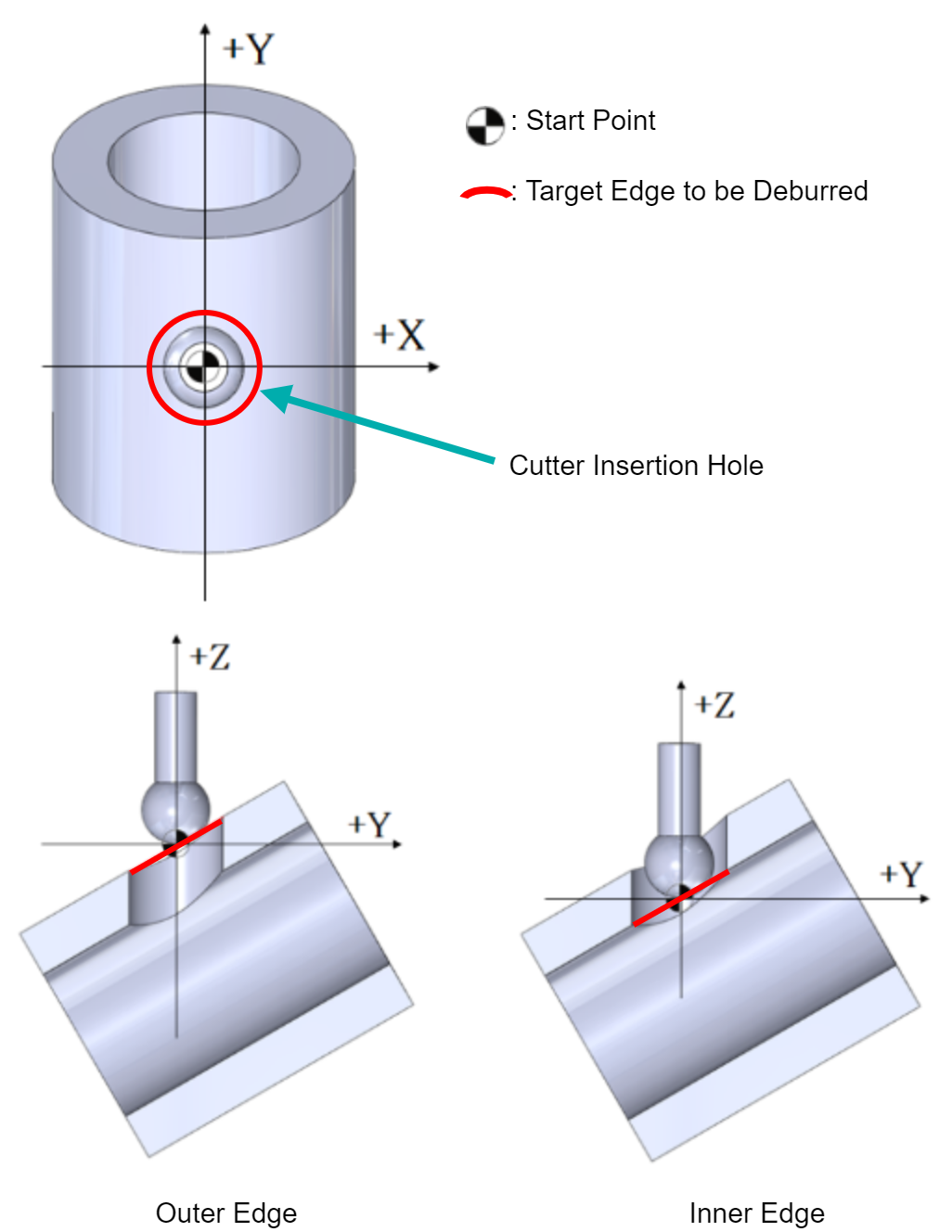

Type D and E: Angled Cross Hole (On-center) - Outer/Inner Diameter
The Start Point is at the center of the Cutter Insertion Hole in the XY plane.
Along the Z-axis, it is at the intersection of the Cutter Insertion Hole axis and the outer/inner diameter.
XEBEC Deburring Tool Path for absolute positioning (ABS) is generated with the Start Point position as the machine zero point (X0Y0Z0).
Example: Angled Cross Hole (On-center)
 |
Machining Parameters To minimize the risk of secondary burrs, keep the tool projection length as short as possible. In case secondary burrs form, reduce the feed rate to 50% of the standard machining parameter and work with the smallest deburring amount (edge break length). |

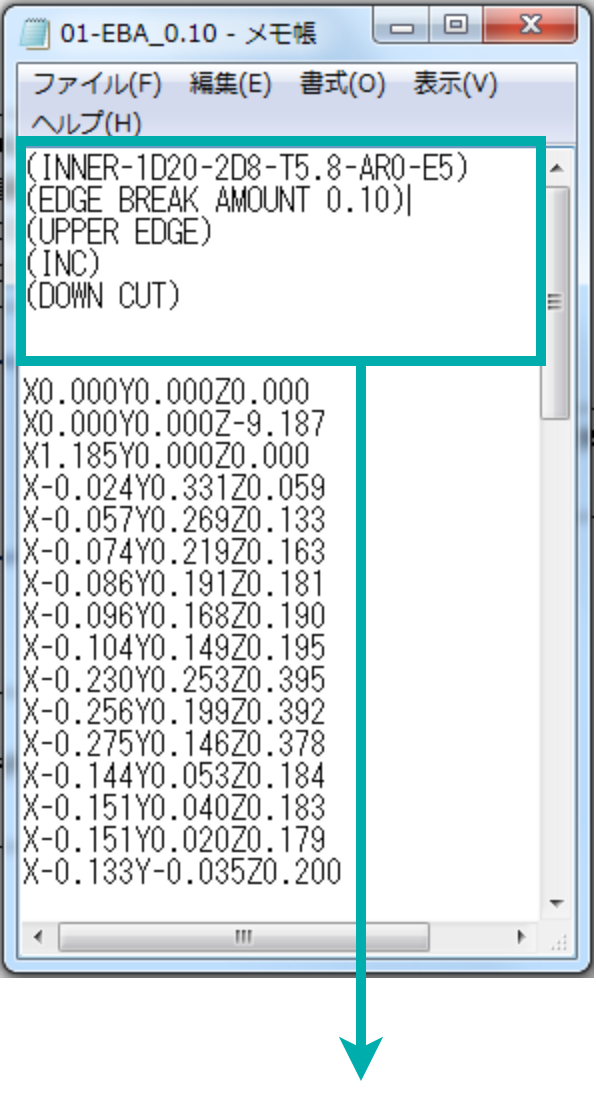

XEBEC Deburring Tool Path Specifications
Specifications |
Descriptions |
|---|---|
| (INNER-1D20-2D10-T5.8-AR0-E0-AA60.) | INNER: Inner Edge [OUTER: Outer Edge] 1D20: Cross Hole 1D Diameter Φ20mm 2D10: Cutter Insertion Hole 2D Diameter Φ10mm T5.8: Cutter Diameter Φ5.8mm AR0: Cross Hole Orientation Angle 0° AA60: Inclination Angle +60° E0: Offset 0mm from the Cross Hole Axis |
| (EDGE BREAK AMOUNT 0.10) | Deburring Amount 0.10mm |
| (UPPER EDGE) | Type D Upper Edge [LOWER: Type E Lower Edge] |
| (INC) | Positioning Format: Incremental [ABS: Absolute] |
| (DOWN CUT) | Down Cut Machining [UP CUT: Up Cut Machining] |
