Start Point
Start Point refers to the initial tool position from which XEBEC Back Burr Cutter and Deburring Tool Path is to begin the deburring operation. Program the tool position so that the centerline and the tip of the Cutter is precisely aligned with the Start Point that we specify. XEBEC Deburring Tool Path should run once the Cutter is brought precisely at this position. The Start Point is at the center of the Cross Hole in the XC plane.

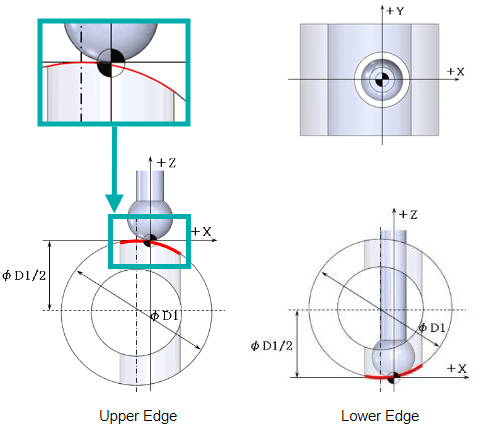

In both examples below, the Start Point is at the center of the Cutter Insertion Hole in the XY plane. Along the Z-axis, it is at an offset poistion away from the centerline by one half the diameter D1.

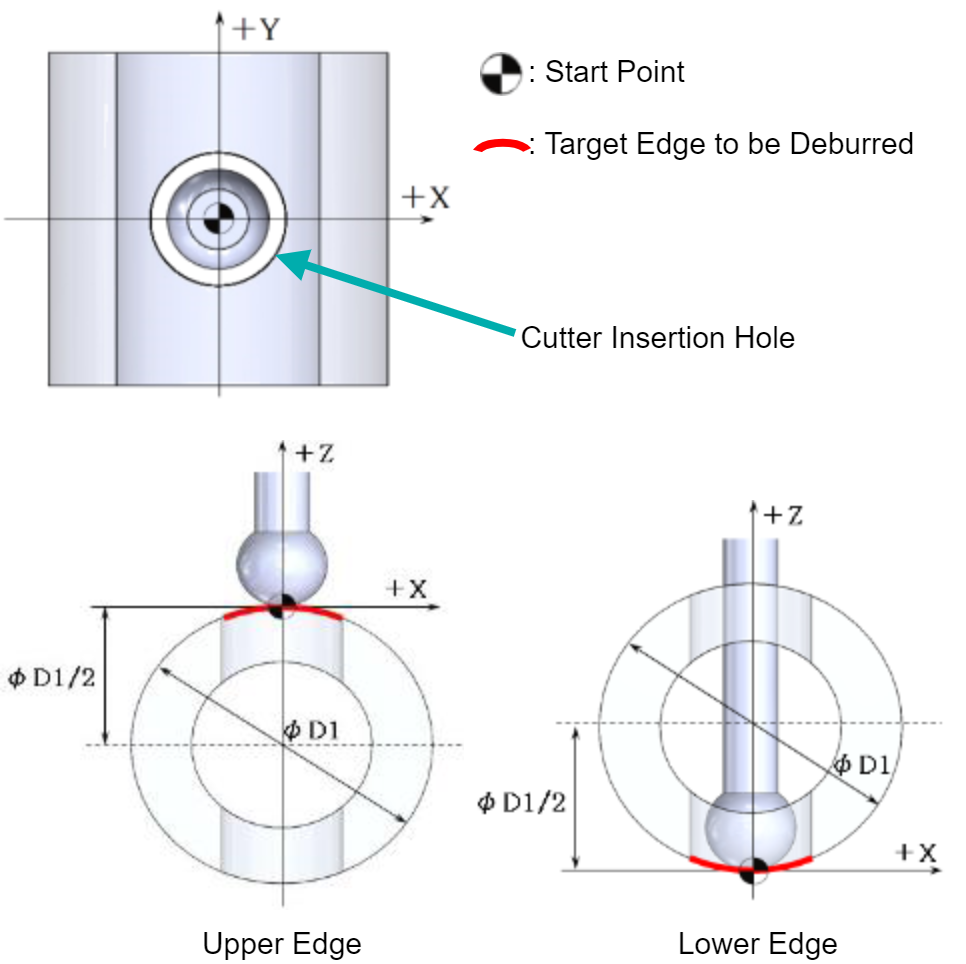

Example: On-Center Cross Hole
