Type B: Orthogonal Cross Hole - Inner Diameter (Cutter Insertion Hole ≦ Cross Hole)
The Start Point is at the center of the Cutter Insertion Hole in the XY plane.
Along the Z-axis, it is at an offset position away from the centerline by one half the diameter D1.
XEBEC Deburring Tool Path for absolute positioning (ABS) is generated with the Start Point position as the machine zero point (X0Y0Z0).

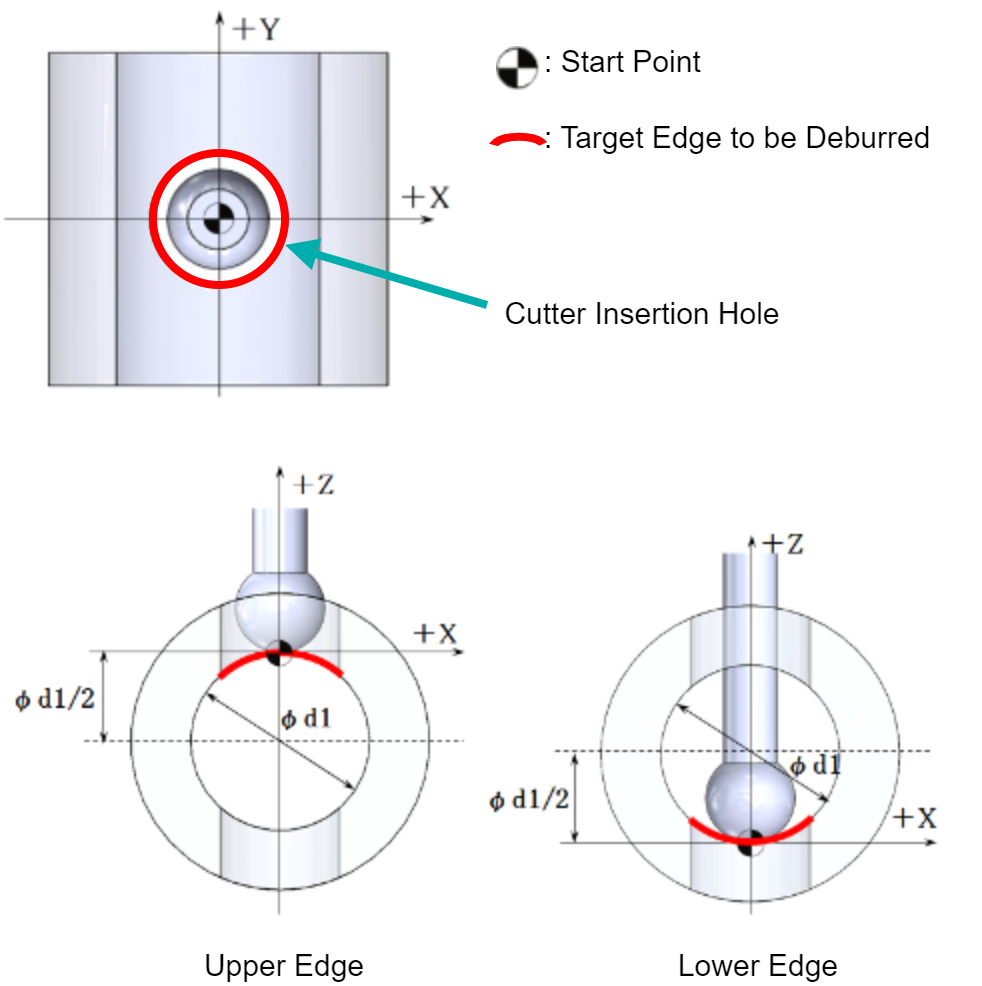

Example: On-Center Cross Hole

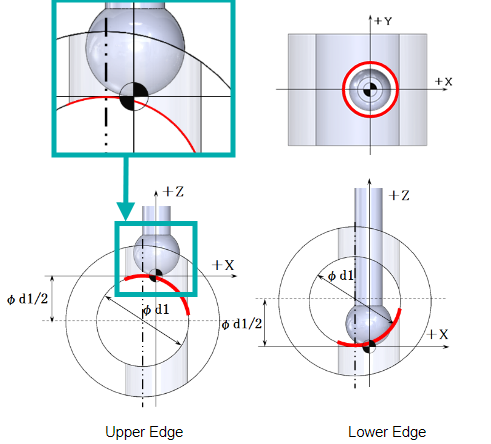

Example: Off-Center Cross Hole
XEBEC Deburring Tool Path Specifications
Specifications are indicated at the top of the text file in parentheses ( )
Specifications |
Descriptions |
|---|---|
(INNER-1D20-2D10-T5.8-AR0-E5) |
INNER: Inner Edge [OUTER: Outer Edge] 1D20: Cross Hole 1D Diameter Φ20mm 2D10: Cutter Insertion Hole 2D Diameter Φ10mm T5.8: Cutter Diameter Φ5.8mm AR0: Cross Hole Orientation Angle 0° E5: Offset +5mm from the Cross Hole Axis |
(EDGE BREAK AMOUNT 0.10) |
Deburring Amount 0.10mm |
(UPPER EDGE) |
Upper Edge [LOWER: Lower Edge] |
(INC) |
Positioning Format: Incremental [ABS: Absolute] |
(DOWN CUT) |
Down Cut Machining [UP CUT: Up Cut Machining] |
