XEBEC Deburring Tool Path Data Format

XEBEC Deburring Tool Path data is stored in separate folders as shown below.


■First Folder Level
  • Contains folders for each target edge (Upper Edge / Lower Edge) to be deburred


      ▼
■Second Folder Level
  • Incremental (INC) Down Cut
  • Absolute (ABS) Down Cut
  • Incremental (INC) Up Cut
  • Absolute (ABS) Up Cut


      ▼
■Third Folder Level
  • Contains a set of five XEBEC Deburring Tool Paths in .txt format, each corresponding to a specific deburring amount (edge break length)
  • Example: 01_0.10_ EdgeBreakAmount.txt
    The second number in the file name "0.10" indicates that the tool path is for deburring amount of 0.10mm


      ▼

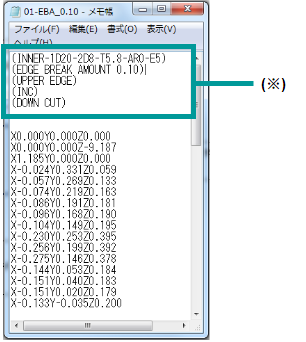

■Text File (.txt)

Specifications are listed at the top in parentheses ( )
Check to make sure that the Deburring Tool Path data is correct for the target edge to deburr.
Check to make sure that the Path data is correct for the target edge to deburr.

Depending on the edge configuration, the data set exist only for the Upper Edge.
In that case, a total of 20 text files is provided.


Data Example

For example, a total of 40 text files are included for an Inner Diameter cross hole.

  • First Folder Level(2 Folders)
    Upper Edge and Lower Edge
  • Second Folder Level(4 Folders)
    Incremental (INC) Up Cut / Down Cut
    Absolute (ABS) Up Cut / Down Cut
  • Third Folder Level(5 Text Files)
    Each text file corresponds to a specific deburring amount (edge break length)
