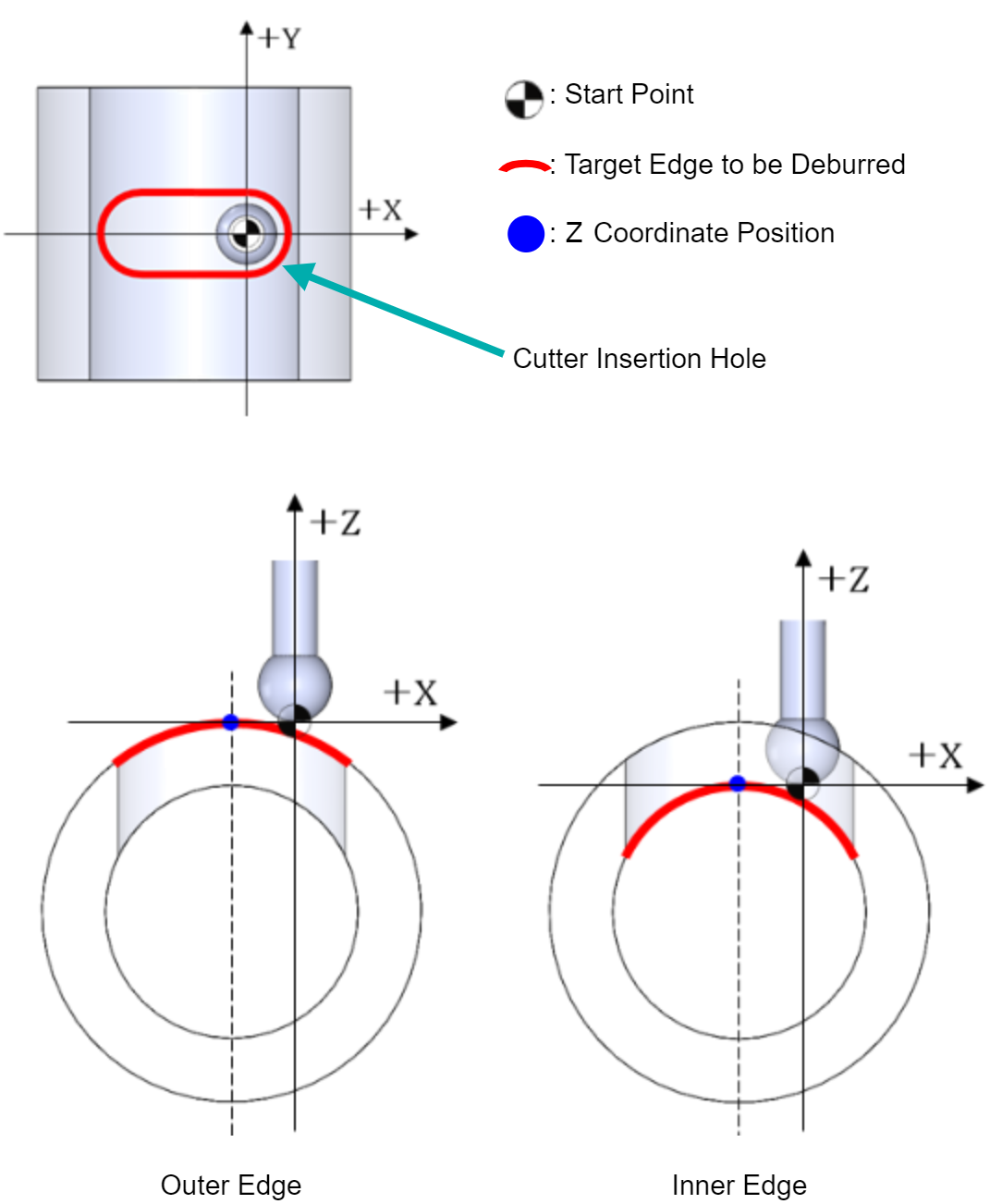

Type I and J: Slotted Hole Perpendicular with Cross Hole Axis (On-center) - Outer/Inner Diameter
When the orientation angle (ar) is 0°, the Start Point is at the center of the Radius R in the XY plane at the +X side. The Z coordinate is at the highest point of the Outer/Inner Diameter.
XEBEC Deburring Tool Path for absolute positioning (ABS) is generated with the Start Point position as the machine zero point (X0Y0Z0).
Example: Slotted Hole Perpendicular with Cross Hole Axis (On-center)
XEBEC Deburring Tool Path Specifications
Specifications are indicated at the top of the text file in parentheses ( )
Specifications |
Descriptions |
|---|---|
| (INNER-1D20-2D8-T5.8-AR90-E1-L10.) | INNER: Inner Edge [OUTER: Outer Edge] 1D20: Cross Hole 1D Diameter Φ20mm 2D8: Cutter Insertion Hole 2D 8mm T5.8: Cutter Diameter Φ5.8mm AR90: Cross Hole Orientation Angle 90° E1: Offset +1mm from the Cross Hole Axis L10: Length Between R Centers 10mm |
| (EDGE BREAK AMOUNT 0.30) | Deburring Amount 0.30mm |
| (UPPER EDGE) | Upper Edge |
| (INC) | Positioning Format: Incremental [ABS: Absolute] |
| (DOWN CUT) | Down Cut Machining [UP CUT: Up Cut Machining] |
