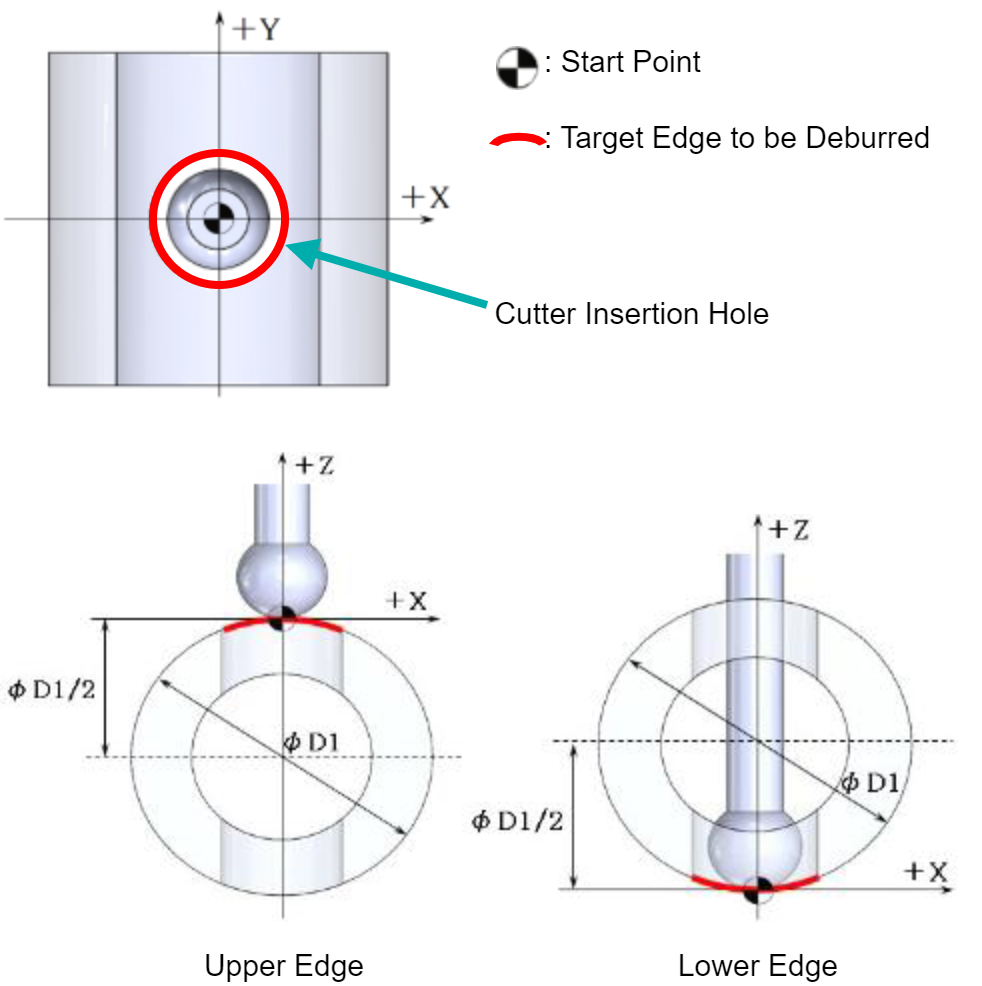

Type A: Orthogonal Cross Hole - Outer Diameter (Cutter Insertion Hole < Outer Diameter)

The Start Point is at the center of the Cutter Insertion Hole in the XY plane.

Along the Z-axis, it is at an offset position away from the centerline by one half the diameter D1.
XEBEC Deburring Tool Path for absolute positioning (ABS) is generated with the Start Point position as the machine zero point (X0Y0Z0).

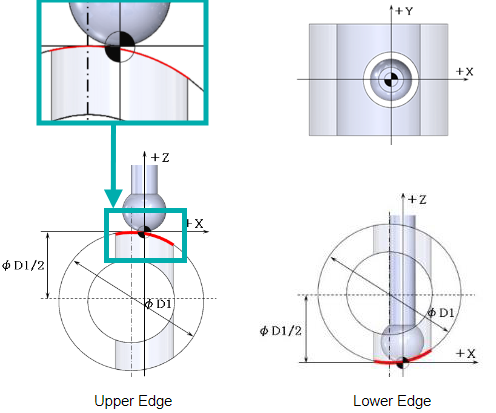

Example: On-Center Cross Hole

Example: Off-Center Cross Hole

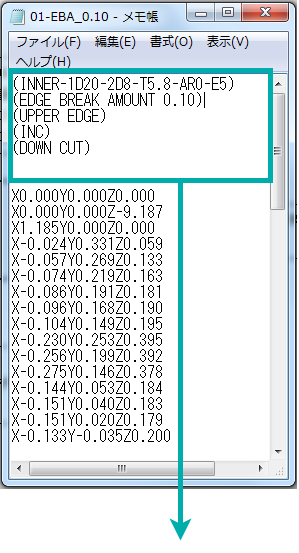

XEBEC Deburring Tool Path Specifications

Specifications are indicated at the top of the text file in parentheses ( )
