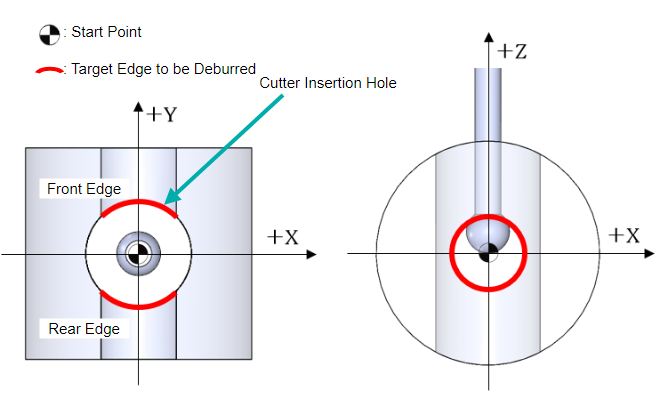

Type K: Orthogonal Cross Hole - Inner Diameter (Cutter Insertion Hole > Cross Hole)
The Start Point is at the center of the Cutter Insertion Hole in the XY plane. Along the Z-axis, it is at the center of the Cross Hole.Along the Z-axis, it is at the center of the Cross Hole.
XEBEC Deburring Tool Path for absolute positioning (ABS) is generated with the Start Point position as the machine zero point (X0Y0Z0).
Example: Orthogonal Cross Hole - Inner Diameter (Cutter Insertion Hole > Cross Hole)
 |
Machining Parameters To minimize the risk of secondary burrs, keep the tool projection length as short as possible. In case secondary burrs form, reduce the feed rate to 50% of the standard machining parameter and work with the smallest deburring amount (edge break length). |
XEBEC Deburring Tool Path Specifications
Specifications are indicated at the top of the text file in parentheses ( )
Specifications |
Descriptions |
|---|---|
| (INNER-1D8.-2D20.-T5.8.-AR90.-E3.) | INNER: Inner Edge [OUTER: Outer Edge] 1D8: Cross Hole 1D Diameter Φ8mm 2D20: Cutter Insertion Hole 2D Diameter Φ20mm T5.8: Cutter Diameter Φ5.8mm AR90: Cross Hole Orientation Angle 90° E3: Offset +3mm from the Cross Hole Axis |
| (EDGE BREAK AMOUNT 0.30) | Deburring Amount 0.30mm |
| (FRONT EDGE) | Front Edge [REAR EDGE: Rear Edge] |
| (INC) | Positioning Format: Incremental [ABS: Absolute] |
| (DOWN CUT) | Down Cut Machining [UP CUT: Up Cut Machining] |
