Type D and E: Angled Cross Hole (Off-center) - Outer/Inner Diameter

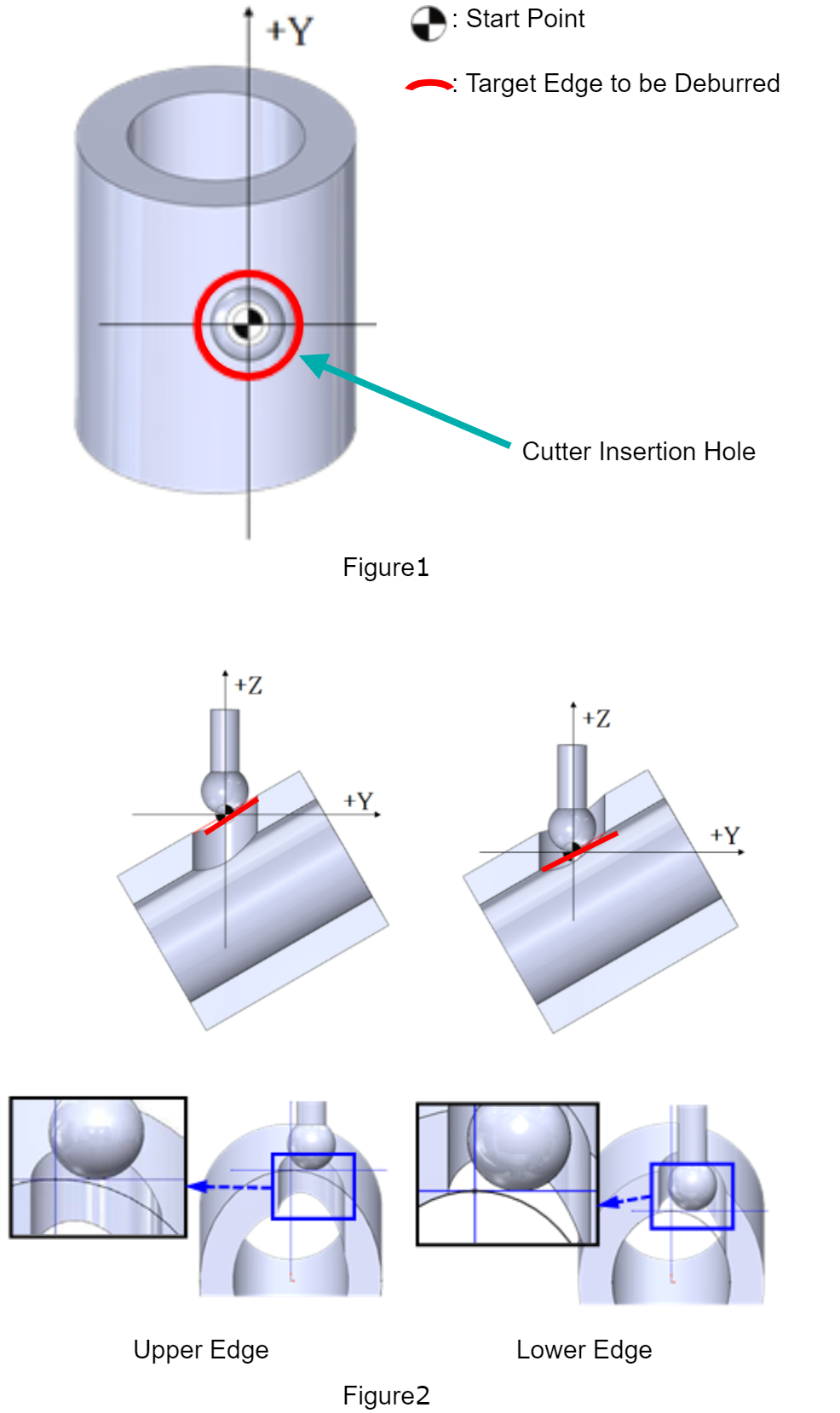

The Start Point is at the center of the Cutter Insertion Hole in the XY plane.

Along the Z-axis, it is at the intersection of the Cutter Insertion Hole axis and the outer/inner diameter.
XEBEC Debutting Tool Path for absolute positioning (ABS) is generated with the Start Point position as the machine zero point (X0Y0Z0).

Example: Angled Cross Hole (Off-center)

Machining Parameters

To minimize the risk of secondary burrs, keep the tool projection length as short as possible. In case secondary burrs form, reduce the feed rate to 50% of the standard machining parameter and work with the smallest deburring amount (edge break length).

XEBEC Deburring Tool Path Specifications

Specifications are indicated at the top of the text file in parentheses ( )

Specifications	Descriptions
(INNER-1D20-2D10-T5.8-AR0-E0-AA60.)	INNER: Inner Edge [OUTER: Outer Edge] 1D20: Cross Hole 1D Diameter Φ20mm 2D10: Cutter Insertion Hole 2D Diameter Φ10mm T5.8: Cutter Diameter Φ5.8mm AR0: Cross Hole Orientation Angle 0° AA60: Inclination Angle +60° E0: Offset 0mm from the Cross Hole Axis
(EDGE BREAK AMOUNT 0.10)	Deburring Amount 0.10mm
(UPPER EDGE)	Upper Edge [LOWER: Lower Edge]
(INC)	Positioning Format: Incremental [ABS: Absolute]
(DOWN CUT)	Down Cut Machining [UP CUT: Up Cut Machining]
