XEBEC Back Burr Cutter Standard Machining Parameters

  • Rotational speed and feed rate are a guide for initial use.

  • To improve the machining result, take steps such as adjusting the rotational speed and feed rate, or select another Tool Path for a different deburring amount (edge break length).

  • If vibration or abnormal noise is detected, or if the max rotational speed or feed rate of the machine is below the parameters listed in the table, lower them both at the same rate to be within the machine’s capability.

  • Different types of cross holes are defined according to their configurations. Please refer to the page below for the appropriate settings for each cross hole type.
    Cross Hole Types

  • The uniformity of the edge break improves by turning on Advanced Preview Control of the machine tool.

  • Machining Parameters
    To minimize the risk of secondary burrs, keep the tool projection length as short as possible. To minimize this risk, keep the tool projection length as short as possible. In case secondary burrs form, reduce the feed rate to 50% of the standard machining parameter and work with the smallest deburring amount (edge break length).
AlTiCrN Coated
[Short / Regular Type]

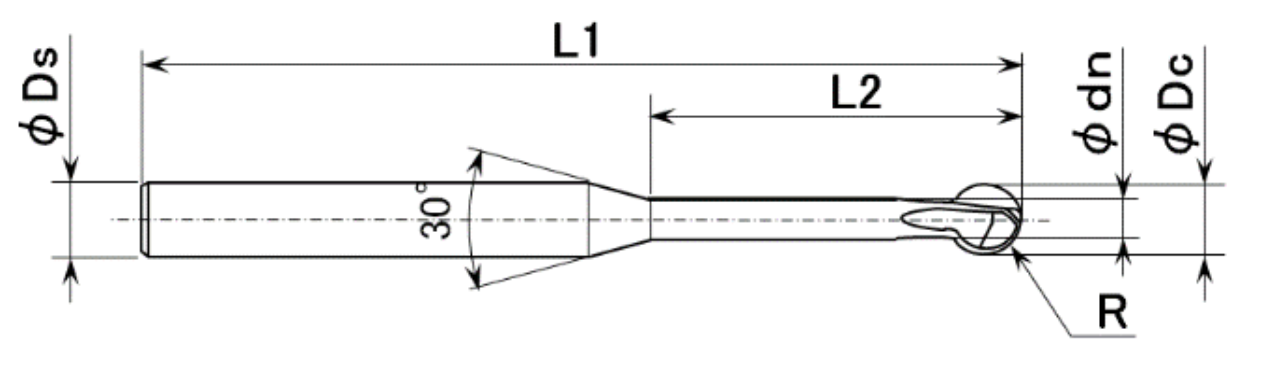

Short Type
Product Code
Cutter Diameter
ΦDc(mm)
Tool Protruding Length
(mm)
Rotational Speed
n (min-1)
Feed Rate
Vf(mm/min)
Rotational Speed
n (min-1)
Feed Rate
Vf(mm/min)
XC-08-AS-3F
0.8
3Dc
20000
1080
20000
1170
XC-13-AS-3F
1.3
3Dc
20000
1080
20000
1170
XC-18-AS-3F
1.8
3Dc
20000
1080
20000
1170
XC-23-AS-3F
2.3
3Dc
15000
1350
18000
1710
XC-28-AS-3F
2.8
3Dc
12500
1800
15000
2520
XC-33-AS-3F
3.3
3Dc
10600
1890
12700
2250
XC-38-AS-3F
3.8
3Dc
9200
2160
11000
2880
XC-48-AS-3F
4.8
3Dc
7200
1980
8500
2880
XC-58-AS-3F
5.8
3Dc
6000
1620
7000
2160
XC-78-AS-3F
7.8
3Dc
4500
1620
5400
1920
XC-98-AS-3F
9.8
3Dc
3600
1320
4300
1560

Regular Type
Product Code
Cutter Diameter
ΦDc(mm)
Tool Protruding Length
(mm)
Rotational Speed
n (min-1)
Feed Rate
Vf(mm/min)
Rotational Speed
n (min-1)
Feed Rate
Vf(mm/min)
XC-08-A
0.8
5Dc
20000
600
20000
650
XC-13-A
1.3
5Dc
20000
600
20000
650
XC-18-A
1.8
5Dc
20000
600
20000
650
XC-23-A
2.3
5Dc
15000
750
18000
950
XC-28-A
2.8
5Dc
12500
1000
15000
1400
XC-33-A
3.3
5Dc
10600
1050
12700
1250
XC-38-A
3.8
5Dc
9200
1200
11000
1600
XC-48-A
4.8
5Dc
7200
1100
8500
1600
XC-58-A
5.8
5Dc
6000
900
7000
1200
XC-78-A
7.8
5Dc
4500
1350
5400
1600
XC-98-A
9.8
5Dc
3600
1100
4300
1300



AlTiCrN Coated
[Straight Type]

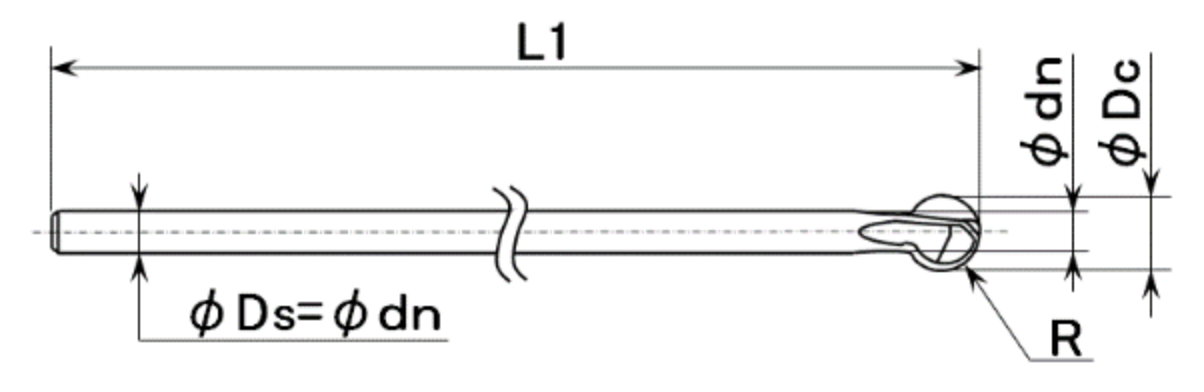

Straight Type
Product Code
Cutter Diameter
ΦDc(mm)
Tool Protruding Length
(mm)
Rotational Speed
n (min-1)
Feed Rate
Vf (mm/min)
Rotational Speed
n (min-1)
Feed Rate
Vf (mm/min)
XC-18-B
1.8
6Dc
9700
480
9700
480
10Dc
4400
220
4400
220
15Dc
2200
110
2200
110
XC-23-B
2.3
6Dc
7900
480
7900
480
10Dc
3500
220
3500
220
15Dc
2200
110
2200
110
XC-28-B
2.8
6Dc
6200
620
6200
620
10Dc
2800
220
2800
220
15Dc
2200
110
2200
110
XC-33-B
3.3
6Dc
5400
460
5400
460
10Dc
2400
190
2400
190
15Dc
1900
95
1900
95
XC-38-B
3.8
6Dc
4600
460
4600
460
10Dc
2000
160
2000
160
15Dc
1600
80
1600
80
XC-48-B
4.8
6Dc
3600
360
3600
360
10Dc
1600
120
1600
120
15Dc
1300
60
1300
60
XC-58-B
5.8
6Dc
3000
300
3000
300
10Dc
1300
100
1300
100
15Dc
1000
50
1000
50
XC-78-B
7.8
6Dc
1600
240
1600
240
10Dc
650
70
650
70
15Dc
200
10
200
10
XC-98-B
9.8
6Dc
1300
200
1300
200
10Dc
500
50
500
50
15Dc
200
10
200
10



Uncoated
[Regular Type]


Regular Type
Product Code
Cutter Diameter
ΦDc(mm)
Tool Protruding Length
(mm)
Rotational Speed
n (min-1)
Feed Rate
Vf(mm/min)
XC-08-A-N
0.8
5Dc
20000
650
XC-13-A-N
1.3
5Dc
20000
650
XC-18-A-N
1.8
5Dc
20000
650
XC-23-A-N
2.3
5Dc
18000
950
XC-28-A-N
2.8
5Dc
15000
1400
XC-33-A-N
3.3
5Dc
12700
1250
XC-38-A-N
3.8
5Dc
11000
1600
XC-48-A-N
4.8
5Dc
8500
1600
XC-58-A-N
5.8
5Dc
7000
1200
XC-78-A-N
7.8
5Dc
5400
1600
XC-98-A-N
9.8
5Dc
4300
1300
