Type G and H: Slotted Hole Parallel with Cross Hole Axis Aligned with X-axis (ar＝90°/-90°)

スタートポイントの一例を下記に示します。（交差穴の姿勢がX軸方向（ar＝90°／-90°）である場合の例）

When the orientation angle (ar) is 90°, the Start Point is at the center of the Radius R in the XY plane at the +X side. When the orientation angle (ar) is -90°, the Start Point is at the -X side. The Z coordinate is at the highest point of the Outer/Inner Diameter. .
These apply regardless of whether the Slotted Hole is On-center or Off-center.

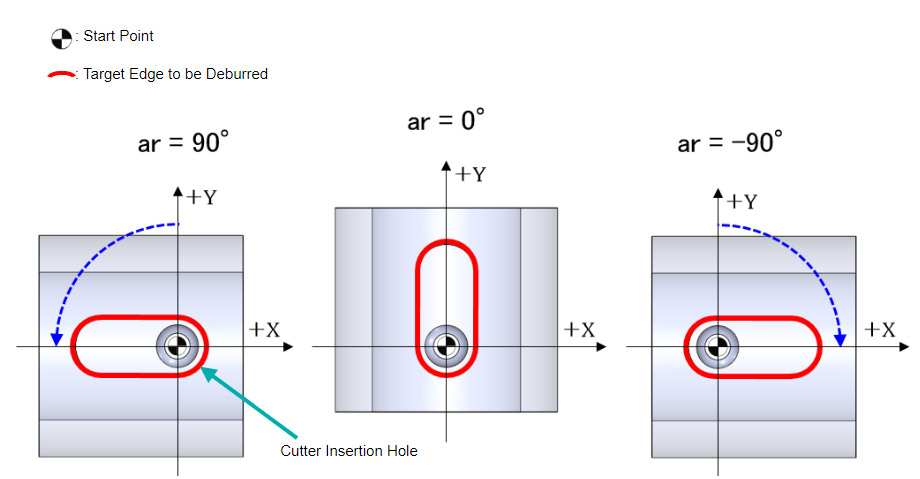

Example: Cross Hole Axis Aligned with X-axis

XEBEC Deburring Tool Path Specifications

Specifications are indicated at the top of the text file in parentheses ( )
