Type M: Broken Hole - Inner Diameter (Cutter Insertion Hole ＞ Cross Hole)

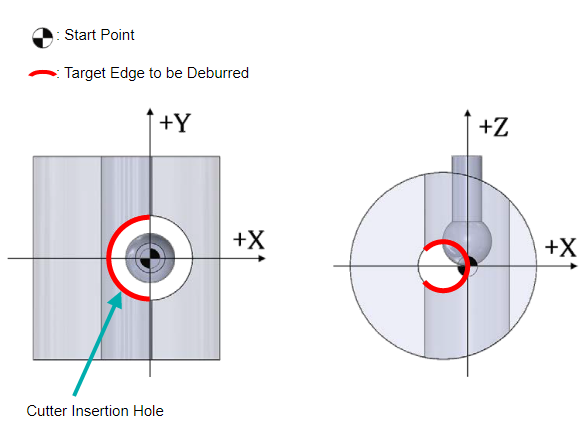

The Start Point is at the center of the Cutter Insertion Hole in the XY plane. Along the Z-axis, it is at the center of the Cross Hole.
XEBEC Deburring Tool Path for absolute positioning (ABS) is generated with the Start Point position as the machine zero point (X0Y0Z0).
Example: Broken Hole - Inner Diameter
 |
Machining Parameters To minimize the risk of secondary burrs, keep the tool projection length as short as possible. In case secondary burrs form, reduce the feed rate to 50% of the standard machining parameter and work with the smallest deburring amount (edge break length). |
XEBEC Deburring Tool Path Specifications
Specifications are indicated at the top of the text file in parentheses ( )
Specifications |
Descriptions |
|---|---|
| (INNER-1D8.-2D9.-T5.8-AR0-E3.5) | INNER: Inner Edge 1D8: Cross Hole Diameter Φ8mm 2D9: Cutter Insertion Diameter Φ9mm T5.8: Cutter Diameter 5.8mm AR0: Cross Hole Orientation Angle 0° E3.5: Offset +3.5mm from the Cross Hole Axis |
| (EDGE BREAK AMOUNT 0.10) | Deburring Amount 0.10mm |
| (UPPER EDGE) | Upper Edge [Lower Edge not applicable with Type M] |
| (INC) | Positioning Format: Incremental [ABS: Absolute] |
| (DOWN CUT) | Down Cut Machining [UP CUT: Up Cut Machining] |
